Merkur 948A

Merkur 948A; Philips Radios - (ID = 287585) Radio

Merkur 948A; Philips Radios - (ID = 287586) Radio

Merkur 948A; Philips Radios - (ID = 287587) Radio

Merkur 948A; Philips Radios - (ID = 5290) Radio
Merkur 948A; Philips Radios - (ID = 962872) Radio Merkur 948A; Philips Radios - (ID = 962877) Radio
Merkur 948A; Philips Radios - (ID = 962875) Radio Merkur 948A; Philips Radios - (ID = 291622) Radio
Merkur 948A; Philips Radios - (ID = 291629) Radio Merkur 948A; Philips Radios - (ID = 291631) Radio
Merkur 948A; Philips Radios - (ID = 291625) Radio Merkur 948A; Philips Radios - (ID = 291627) Radio
Merkur 948A; Philips Radios - (ID = 291632) Radio Merkur 948A; Philips Radios - (ID = 291633) Radio
Use red slider bar for more.
Merkur 948A; Philips Radios - (ID = 962872) Radio
Philips Radios -: Merkur 948A [Radio] ID = 962872 674x700

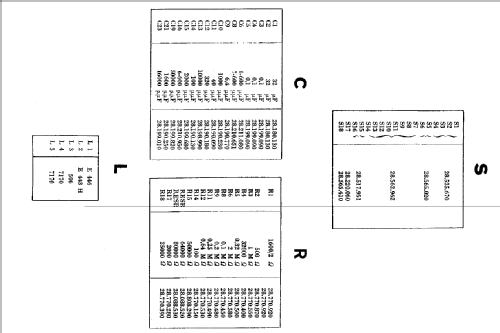

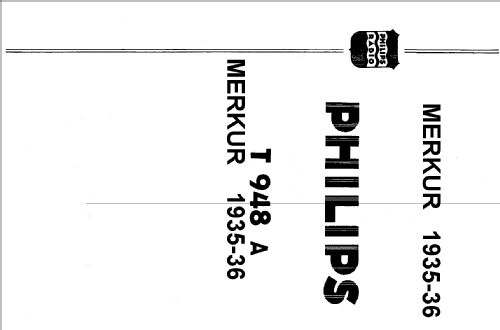

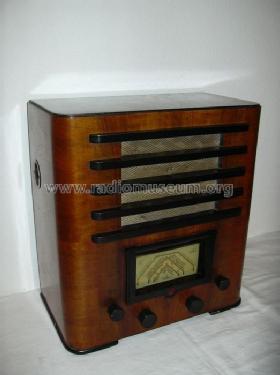

Select picture or schematic to display from thumbnails on the right and click for download.
For model Merkur 948A, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: E446 E443H 506
Main principle TRF without regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Merkur 948A - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 350 x 380 x 205 mm / 13.8 x 15 x 8.1 inch
Notes E446 1931 möglich?
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen


All listed radios etc. from Philips Radios - Deutschland
Here you find 2518 models, 2239 with images and 1529 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
