Philitina B0X19U /00L

Philitina B0X19U /00L; Philips; Eindhoven (ID = 1642153) Radio

Philitina B0X19U /00L; Philips; Eindhoven (ID = 1642154) Radio

Philitina B0X19U /00L; Philips; Eindhoven (ID = 1642155) Radio

Philitina B0X19U /00L; Philips; Eindhoven (ID = 1858342) Radio

Philitina B0X19U /00L; Philips; Eindhoven (ID = 1858343) Radio

Philitina B0X19U /00L; Philips; Eindhoven (ID = 1858344) Radio
Philitina B0X19U /00L; Philips; Eindhoven (ID = 807159) Radio Philitina B0X19U /00L; Philips; Eindhoven (ID = 807162) Radio
Philitina B0X19U /00L; Philips; Eindhoven (ID = 807160) Radio Philitina B0X19U /00L; Philips; Eindhoven (ID = 807161) Radio
Philitina B0X19U /00L; Philips; Eindhoven (ID = 1092527) Radio Philitina B0X19U /00L; Philips; Eindhoven (ID = 1136516) Radio
Philitina B0X19U /00L; Philips; Eindhoven (ID = 1136518) Radio
Use red slider bar for more.
Philitina B0X19U /00L; Philips; Eindhoven (ID = 807159) Radio
Philips; Eindhoven: Philitina B0X19U /00L [Radio] ID = 807159 700x454
Select picture or schematic to display from thumbnails on the right and click for download.
For model Philitina B0X19U /00L, Philips; Eindhoven (tubes international!); Miniwatt:
My own collection.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF80 UCL82 UY89
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110-127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Philitina B0X19U /00L - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 262 x 138 x 142 mm / 10.3 x 5.4 x 5.6 inch
Notes
3 cabinet colors:  /00R = black, /00L = red, /00F = green.
AM radio with foil antenna: only BC: 517 - 1622 kHz.
Loudspeaker AD2500.
Net weight (2.2 lb = 1 kg) 1.450 kg / 3 lb 3.1 oz (3.194 lb)

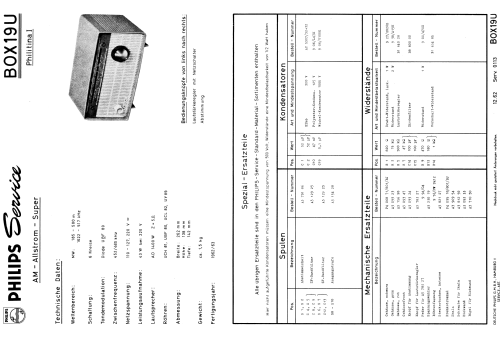

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Antonio Dias Rodrigues. See "Data change" for further contributors.
