• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1962–1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 183324

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH81 UBF80 UCL82 UY89

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110-127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Philitina B0X19U /22F - Philips; Eindhoven tubes

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 268 x 140 x 140 mm / 10.6 x 5.5 x 5.5 inch

• Notes

• Gehäuseantenne aus Alu-Folie. Aufbau auf gedruckter Schaltung. Lackiertes Plastikgehäuse in den Farben rot, grün oder schwarz.

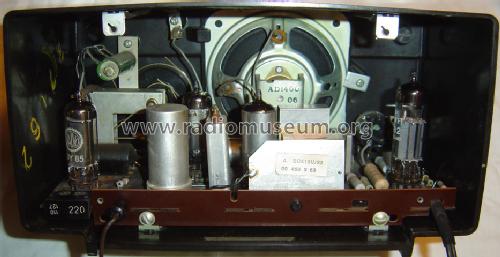

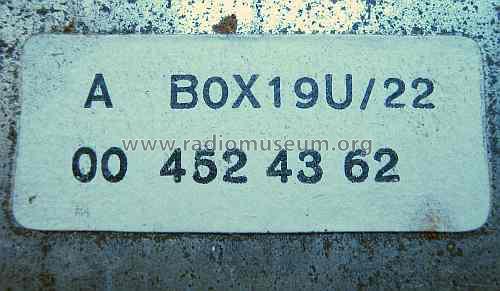

  Die Typennummer auf dem Typenschild kann auch als BOX19U/22F gelesen werden.

  ---

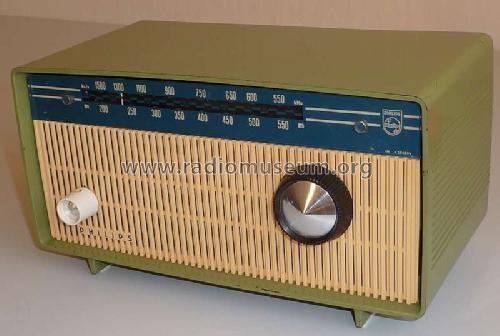

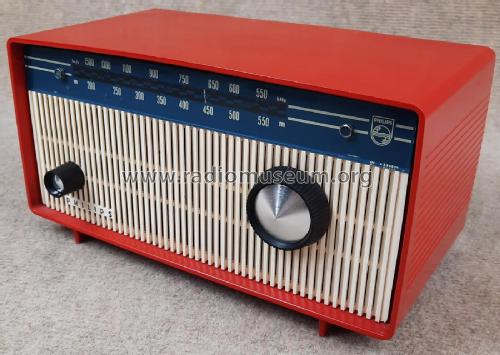

  3 cabinet colors:  /00R = black, /00L = red, /00F = green.
  AM radio with foil antenna: only BC: 517 - 1622 kHz.
  Loudspeaker AD2500.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Price in first year of sale
• 99.00 DM

• Mentioned in
• Handbuch VDRG 1963/1964

• Literature/Schematics (1)
• Handbuch RFP 1963 (Philips Apparatenblad)

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Manfred Seidel. See "Data change" for further contributors.
