Brand
|
Deutsche Philips-Ges. | ||||
---|---|---|---|---|---|
Year: 1959–1961 | Category: Sound/Video Recorder and/or Player |
Wave bands | - without |
---|---|

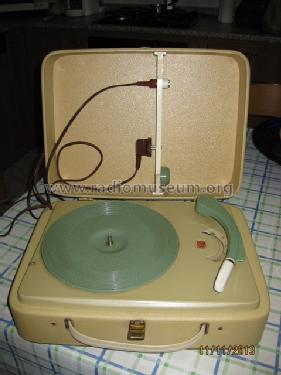

Details | Record Player (not changer) |
Power type and voltage | Alternating Current supply (AC) / 110; 127; 220 Volt |
Loudspeaker | - For headphones or amp. |
Power out | |
from Radiomuseum.org | Model: Phonokoffer I SK20 - Philips Radios - Deutschland |
Material | Leather / canvas / plastic - over other material |
Shape | Tablemodel, low profile (big size). |
Dimensions (WHD) | 375 x 150 x 310 mm / 14.8 x 5.9 x 12.2 inch |

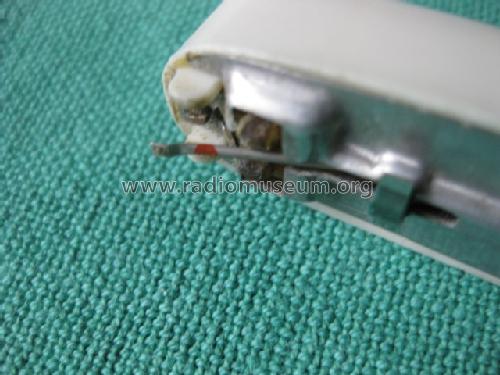

Notes | 4 Geschwindigkeiten 16/33/45/78 UpM; Stereo-Kristall-System AG3063, Frequenzbereich 30-15000 Hz. Phonochassis = SC20. Da zur Zeit keine Unterlage zum SC20/SK20 vorliegt, führen wir hier die durch ein Typenschild belegte Philips Typennummer NG1341 mit auf. Für diese existiert ein eigenständiges Modellblatt. Das Modell wird im Handbuch VDRG 1960/61 nur noch als "Phonokoffer" ohne I bzw. 1 geführt. Die dort gezeigte Abbildung zeigt eine andere Ausführung (2 Verschlüsse statt einem). |
Net weight (2.2 lb = 1 kg) | 3 kg / 6 lb 9.7 oz (6.608 lb) |
Price in first year of sale | 89.00 DM |
External source of data | Erb |
Source of data | HdB d.Rdf-& Ferns-GrH 1959/60 |
Mentioned in | HdB d.Rdf-& Ferns-GrH 1960/61 |
