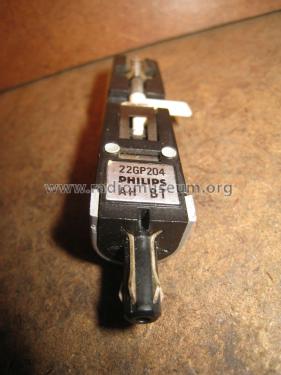

Pick-up cartridge 22GP204
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1970 ?
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 283733
Q: Philips, Service-Unterlagen
Q: Philips, Service-Unterlagen
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Pick-up cartridge 22GP204 - Philips; Eindhoven tubes
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 60 x 15 x 0.8 mm / 2.4 x 0.6 x 0 inch
- Notes
-
Ceramic stereo pick-up cartridge with 5-pole bajonett. Tracking pressure 3-6.
Sapphire needle 18µ, spare needle part no. 4822 251 200 02 (1973).
- Net weight (2.2 lb = 1 kg)
- 0.050 kg / 0 lb 1.8 oz (0.11 lb)
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
