Pionier Junior II (2)

Pionier Junior II ; Philips; Eindhoven (ID = 365462) Kit
Pionier Junior II ; Philips; Eindhoven (ID = 365464) Kit Pionier Junior II ; Philips; Eindhoven (ID = 365465) Kit
Pionier Junior II ; Philips; Eindhoven (ID = 365466) Kit Pionier Junior II ; Philips; Eindhoven (ID = 365468) Kit
Pionier Junior II ; Philips; Eindhoven (ID = 769506) Kit
Use red slider bar for more.

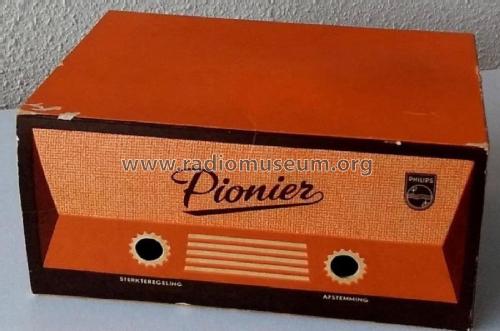

Pionier Junior II ; Philips; Eindhoven (ID = 365464) Kit
Philips; Eindhoven: Pionier Junior II [Kit] ID = 365464 640x359
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pionier Junior II (2), Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1958–1962 Category: Kit (Parts plus instruction) or building instructions only
Semiconductors (the count is only for transistors) 2: OC13 OC13
Main principle TRF with diode detector; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 1,5 Volt
Loudspeaker - only for Earphone!
Power out
from Radiomuseum.org Model: Pionier Junior II - Philips; Eindhoven tubes
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 160 x 80 x 120 mm / 6.3 x 3.1 x 4.7 inch
Notes Boys radio kit, carton box enclosure.
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Price in first year of sale 27.00 NLG
Mentioned in - - Manufacturers Literature

Model page created by John Hupse † 28.9.20. See "Data change" for further contributors.
