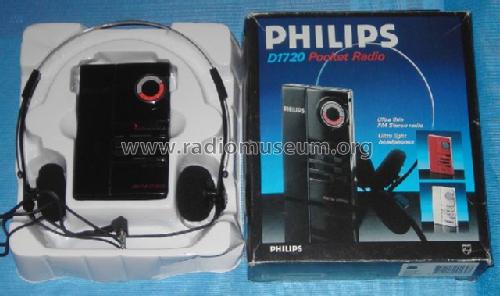

Pocket Radio D1720 /00 /02

Pocket Radio D1720 /00 /02; Philips Hong Kong (ID = 569346) Radio Pocket Radio D1720 /00 /02; Philips Hong Kong (ID = 569347) Radio
Pocket Radio D1720 /00 /02; Philips Hong Kong (ID = 569348) Radio Pocket Radio D1720 /00 /02; Philips Hong Kong (ID = 569349) Radio
Pocket Radio D1720 /00 /02; Philips Hong Kong (ID = 1368255) Radio Pocket Radio D1720 /00 /02; Philips Hong Kong (ID = 1368258) Radio
Use red slider bar for more.
Pocket Radio D1720 /00 /02; Philips Hong Kong (ID = 569346) Radio
Philips Hong Kong: Pocket Radio D1720 /00 /02 [Radio] ID = 569346 497x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pocket Radio D1720 /00 /02, Philips Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  Philips Hong Kong
Year: 1987/1988 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: 2SC2668 2SC2668 2SC2668 TA7687 TA7688 TA7342
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / LR03: 2 x 1,5 Volt
Loudspeaker - For headphones or amp.
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Pocket Radio D1720 /00 /02 - Philips Hong Kong
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 63 x 105 x 15 mm / 2.5 x 4.1 x 0.6 inch
Notes

Ferritantenne: 40 mm flach, 8 x 4 mm; FM-Antenne über Ohrhörerkabel, 3,5 mm Klinke. Wellenbereichsschalter: FM-Stereo/FM/AM (Fa. ALPS); Lautstärkeregler getrennt Li/Re (Fa. DIOK); Elko's: Fa. Nichicon. LED-Anzeige für Stereoempfang.

Net weight (2.2 lb = 1 kg) 0.1 kg / 0 lb 3.5 oz (0.22 lb)

Model page created by Alfred Przybilla. See "Data change" for further contributors.
