Portable D2002/19

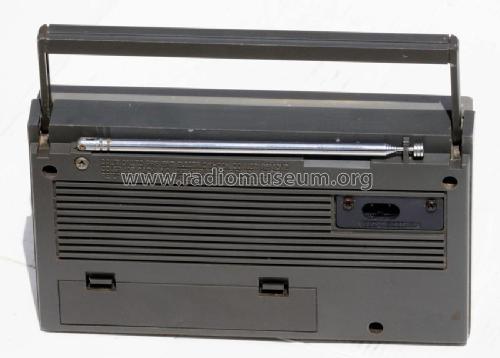

Portable D2002/19; Philips Malaysia; (ID = 1469213) Radio Portable D2002/19; Philips Malaysia; (ID = 1469214) Radio
Use red slider bar for more.

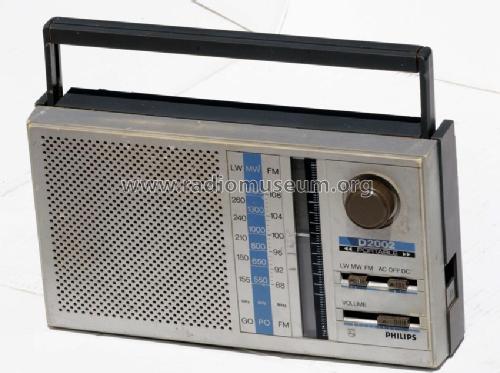

Portable D2002/19; Philips Malaysia; (ID = 1469213) Radio
Philips Malaysia;: Portable D2002/19 [Radio] ID = 1469213 850x635
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable D2002/19, Philips Malaysia; Petaling Jaya

Country:  Malaysia
Manufacturer / Brand:  Philips Malaysia; Petaling Jaya
Year: 1985 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220/ 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: Portable D2002/19 - Philips Malaysia; Petaling
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 202 x 102 x 45 mm / 8 x 4 x 1.8 inch
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)

Model page created by Jean-Louis Buton. See "Data change" for further contributors.



All listed radios etc. from Philips Malaysia; Petaling Jaya
Here you find 56 models, 56 with images and 20 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
