Portable MP3-CD Player EXP2465/00

Portable MP3-CD Player EXP2465/00; Philips 飞利浦; (ID = 1471035) R-Player Portable MP3-CD Player EXP2465/00; Philips 飞利浦; (ID = 1471038) R-Player
Portable MP3-CD Player EXP2465/00; Philips 飞利浦; (ID = 1471040) R-Player Portable MP3-CD Player EXP2465/00; Philips 飞利浦; (ID = 1471041) R-Player
Use red slider bar for more.
Portable MP3-CD Player EXP2465/00; Philips 飞利浦; (ID = 1471035) R-Player

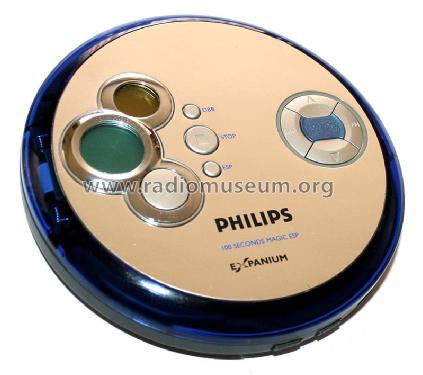

Philips 飞利浦;: Portable MP3-CD Player EXP2465/00 [R-Player] ID = 1471035 800x708
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable MP3-CD Player EXP2465/00, Philips 飞利浦; China

Country:  People's Republic of China
Manufacturer / Brand:  Philips 飞利浦; China
Year: 2005 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio)
Power type and voltage Batteries / addl. power jack / 2 x 1,5 / 4,5 Volt
Loudspeaker - only for Earphone!
Power out
from Radiomuseum.org Model: Portable MP3-CD Player EXP2465/00 - Philips 飞利浦; China
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 241 x 55 x 152 mm / 9.5 x 2.2 x 6 inch
Notes

D/A converter: 1-bit. Frequency response: 20 - 20 000 Hz. Signal to noise ratio: > 85dB. Sound Enhancement: Dynamic Bass Boost. Output Power: 2 x 4mW RMS. Volume Control: digital. Acoustic Feedback. Disc Playback Modes: 50-Track Programmable, Hold, Next/Previous Album Search, Next/Previous Track Search, Repeat one/album/all, Shuffle album/all. Electronic Skip Protection(CD): 45 seconds. File systems supported: ISO-9660, Jolliet. Magic ESP (MP3-CD): 100 seconds. MP3 bit rates: 32 - 320 kbps.

.

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Mentioned in -- Original-techn. papers.

Model page created by Danko Tkalec. See "Data change" for further contributors.
