Portable Radio AE2150 /04 /05

Philips 飞利浦; China

  • Year
  • 1998/1999
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 283396

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / 2 x 1.5 / DC 3 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch
  • Power out
  • 0.3 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Portable Radio AE2150 /04 /05 - Philips 飞利浦; China
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 210 x 135 x 60 mm / 8.3 x 5.3 x 2.4 inch
  • Notes
  • Portable radio with analogue tuning. Wave ranges:

    • FM 87.5 - 108 MHz
    • MW 525 - 1606.5 kHz
    • LW 150 - 255 kHz

    Ferroceptor for AM and telescopic aerial for FM. Headphone connector.

    External power supply:

    • /04 = 230 VAC to 3 VDC
    • /05 = 240 VAC to 3 VDC
  • Net weight (2.2 lb = 1 kg)
  • 0.520 kg / 1 lb 2.3 oz (1.145 lb)
  • Mentioned in

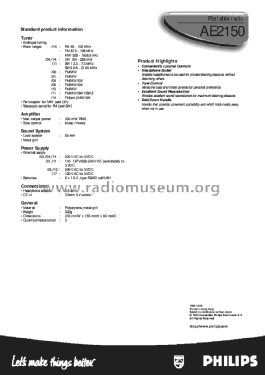

  • - - Manufacturers Literature
