• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28219

• • Brand: Deutsche Philips-Ges.

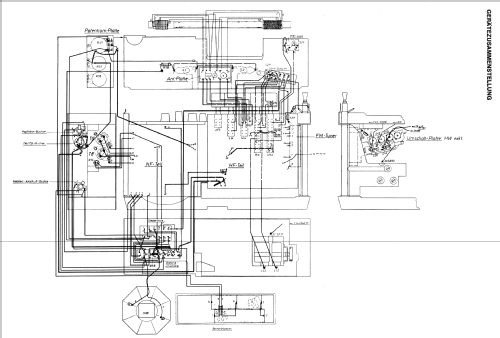

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BF115 BF115 AF121 AF121 AF121 AC126 AC125 AD162 AD162 BA102 AA119 AA119 AA119 AA119 AA119

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

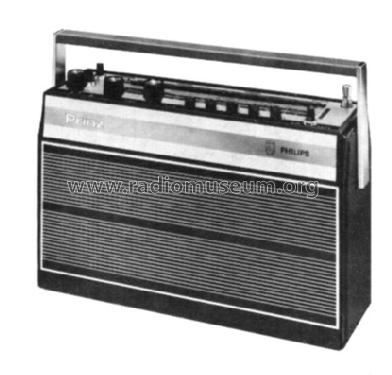

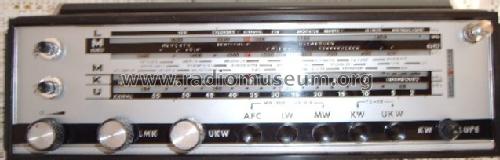

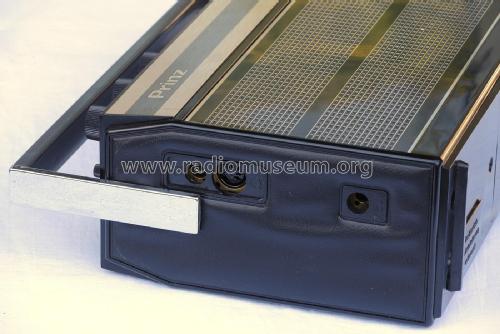

• Model: Prinz 12RP403 /00R - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 315 x 195 x 90 mm / 12.4 x 7.7 x 3.5 inch

• Notes
• Betrieb im Auto über Autohalterung ER8100 aus 6-V- oder 12-V-Autobatterie, dann Ausgangsleistung 5 W. Netzbetrieb mit zusätzlichem Netzteil möglich.

• Net weight (2.2 lb = 1 kg)
• 3.6 kg / 7 lb 14.9 oz (7.93 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971

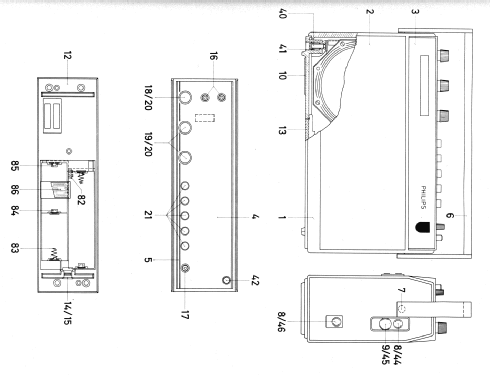

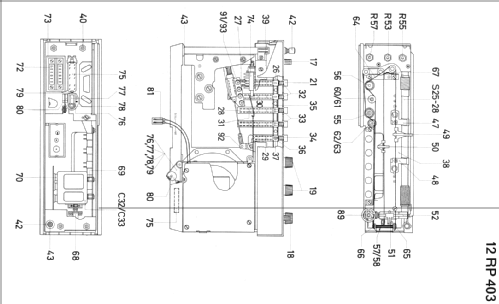

• Literature/Schematics (1)
• -- Original-techn. papers.
