Radio Cassette Recorder AQ4150 /00S

Philips 飞利浦; China

  • Year
  • 1995 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 230739

 Technical Specifications

  • Number of Transistors
  • 4
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220-230 / D: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.5 cm = 3.7 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radio Cassette Recorder AQ4150 /00S - Philips 飞利浦; China
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 300 x 150 x 110 mm / 11.8 x 5.9 x 4.3 inch
  • Notes
  • FM: 88-108 MHz, MW: 530-1600 kHz.

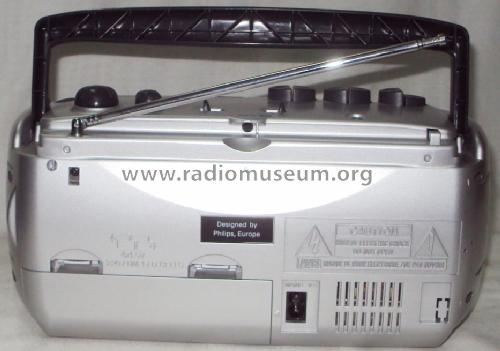

    Early sets might have Hong Kong on the label as country of origin, but no proof of that yet. The set in the pictures showing China, was made in 2000.

    Jack for earphones.

  • Source of data
  • - - Manufacturers Literature
  • Author
  • Model page created by João-Afonso Santos. See "Data change" for further contributors.
