For model Radio-Recorder 22RL673 /00R /60R, Philips; Eindhoven (tubes international!); Miniwatt:
Philips 22RL673 radio-magnetophone

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1967 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 22: AF125 AF126 AC125 AC125 AC125 AC125 AC126 BC109 AC188 AC187 AF126 AF121 AF124 BC109B BC108B BC109C BC108 BC108B AC127 AC126 AC127 AC128 AA119 BA114 BA102 OA47
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Dry Batteries / 5 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1.4 W (unknown quality)
from Radiomuseum.org Model: Radio-Recorder 22RL673 /00R /60R - Philips; Eindhoven tubes
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 315 x 180 x 90 mm / 12.4 x 7.1 x 3.5 inch
Notes
  • AM radio with built-in ferroceptor:
    • LW: 150 - 283 kHz.
    • BC: 510 - 1620 kHz.
    • SW: 6.0 - 9.8 MHz.
  • FM radio with telescopic antenna: 87.5 - 104 MHz.
  • Amplifier: 1 x 1.4 Watt in 4 Ohm.
  • Cassette: record and playback.
  • Sockets for:
    • External power supply.
    • External loudspeaker or earphone.
    • External AM/FM antenne (car).
    • PU or second recorder.
    • Microphone.
    • Remote control.
  • Contains diodes: 7 x AA119, 1 x BA102, 7 x BA114, 1 x OA47.

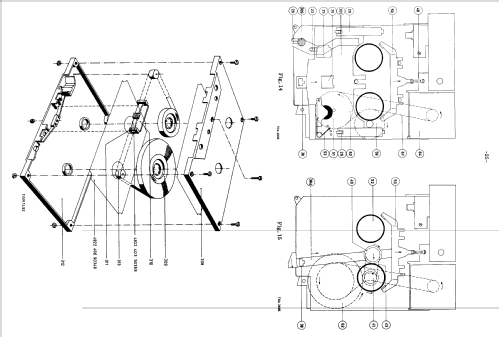

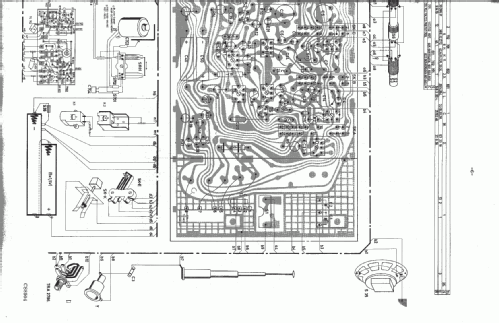

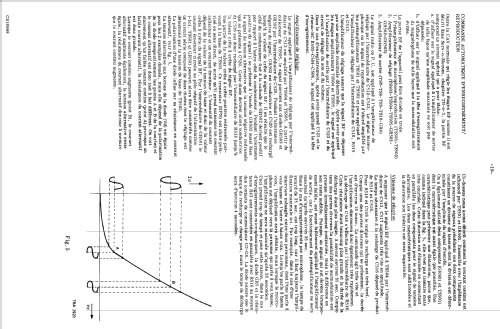

Mentioned in -- Original-techn. papers.
