• Year
  • 1979 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 247928

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 22
  • Main principle
  • Superheterodyne (common); ZF/IF 452/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110; 220 / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.8 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

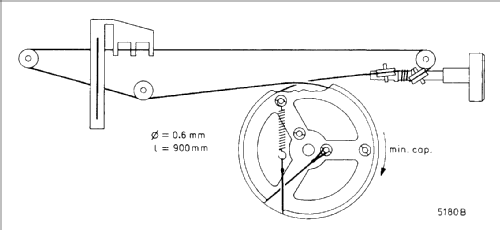

  • Model: Radio-Recorder 90RR330 /00 - Philips; Eindhoven tubes
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • Wave range:
    LW: 520 - 1605 kHz.
    FM: 87,5 - 104 MHz.
    One semiconductor per tye listed.



  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
