Stockholm Radioplayer 176
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 154046
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-230; 240-250 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Stockholm Radioplayer 176 - Philips Australia
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Gramo. unit: Philips AG1000. Dial lamps: 2x 6,3V/0,32A.
Cabinet finished in Summer Gold.
- Price in first year of sale
- 103.95 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. XIV
- Literature/Schematics (1)

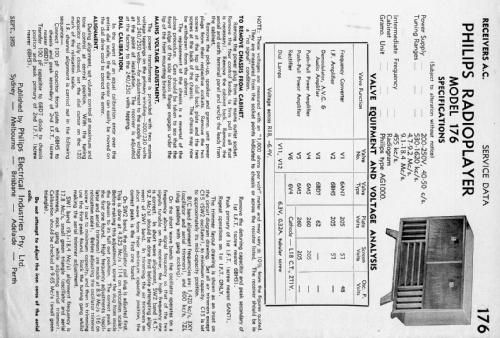

- - - Manufacturers Literature (Philips Radioplayer Service Data, Sept 1955.)
- Literature/Schematics (2)
- J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page P28.)
- Author
- Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
- Other Models
-
Here you find 900 models, 689 with images and 411 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips Australia
Forum contributions about this model: Philips Australia: Stockholm Radioplayer 176
Threads: 1 | Posts: 2
Hello. Please note that is model is a duplicate. See model I.D. = 196009.
Regards, Stuart
Stuart Irwin, 17.Jan.15
