Recordergram Nova Sonic RF4
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1965–1968
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 284794
From the collection of Andrew McCallum
From the collection of Andrew McCallum

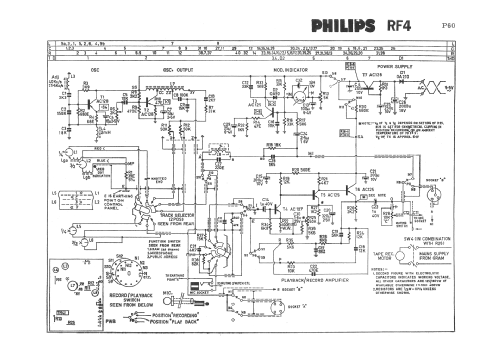

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Changer + Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Recordergram Nova Sonic RF4 - Philips Australia
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 45 x 15.75 x 15.5 inch / 1143 x 400 x 394 mm
- Notes
-
Philips RF4 Novasonic "Recordergram"
A six-valve broadcast four-speed stereogram and three-speed, four-track tape recorder, housed in a single cabinet in maple or walnut tonings with Aborite heat, stain and scratch-proof finish.
Features: Philips Satellite circuitry. Tuning range 525-1605 kC/s (kHz). Speakers, two 8" twin-cone. Output 6 watts; 3 watts per channel. Record changer is four-speed BSR Type UA15 with ceramic pick-up head.
Tape recorder: Type R1-4, has three speeds, 1⅞, 3¾ and 7½ ips; four-track system; accepts all spool sizes up to 7". Fitted with recording level meter; program indicator; automatic electrical mixing for "Swingalong" facility. Chassis is fully transistorised. Dynamic microphone.
Control: function switch, record/play-back voice, radio or records, record/playback radio or records with "Swingalong", public address. (FROM MINGAY'S PRICE SERVICE)
- Price in first year of sale
- 198.45 AUS £
- Mentioned in
- Mingay's Electrical (Retail) WEEKLY (New Products, 14/5/1965.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Philips Service Notes, June 1965.)
- Literature/Schematics (2)
- J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, Group 1, Septeber 1966, Page P60.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
