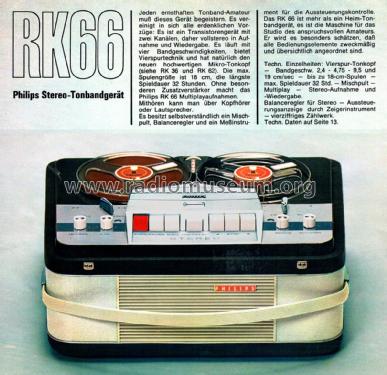

Philips Radios -: RK66 EL3534A/22 [R-Player] ID = 122071 784x547
Select picture or schematic to display from thumbnails on the right and click for download.
For model RK66 EL3534A/22, Philips Radios - Deutschland:
Firmenbild

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1962–1964 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 17: AC107 OC75 OC44 OC74 OC26 OC79
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker 2 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: RK66 EL3534A/22 - Philips Radios - Deutschland
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 447 x 380 x 220 mm / 17.6 x 15 x 8.7 inch
Notes Transistoren: 4× AC107, 6× OC75, 2× OC44, 2× OC74, 2× OC26, OC79. Vierspur Stereo; Bandgeschwindigkeiten: 2,4/4,75/9,5/19 cm/s. Spulen-Ø 18 cm. NF-Endstufe mit 2× 3 W. Vierspur Stereo; Bandgeschwindigkeiten: 2,4/4,75/9,5/19 cm/s.
Spulen-Ø 18 cm. NF-Endstufe mit 2× 3 W.
Einige Transistortypen mehrfach vorhanden.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 999.00 DM
External source of data Erb
Source of data Handbuch VDRG 1963/1964
Mentioned in Funk-Technik (FT) (15/1962, S. 506 - 509 / Ausführliche Beschreibung, Daten, Schema)
Literature/Schematics (1) -- Original-techn. papers.
