• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1990 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 270351

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Batteries / addl. power jack / 4 x 1,5 / 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Digital RMS Multimeter PM2718 /02 /12 - Philips; Eindhoven tubes

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 116 x 172 x 66 mm / 4.6 x 6.8 x 2.6 inch

• Notes

• Multimeter with 4+1 digit & bargraph LCD display, MIN/MAX, Relative, auto capture and logic function included.

  Executions:
  /02 display without illumination
  /12 with illumination

  Measuring:
  VDC, VAC, Hz (up to 200 kHz), dB (re. 50 Ω and 600 Ω), diode, Ohm, Temp (PT100), ADC, AAC, logic states up to 10 MHz.

  This is the best accuracy model of PM2x18 family multimeters.

  Calibration possible by jumper and keyboard in calibration mode.

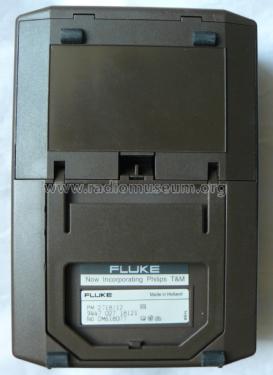

  1990 users manual shows only the Philips brandname. Multimeter example known with Philips on the front and Fluke on the back, showing 1994 date codes hence produced shortly after 1993 when Fluke took over the Philips test & measurement division.

• Net weight (2.2 lb = 1 kg)
• 0.7 kg / 1 lb 8.7 oz (1.542 lb)

• Mentioned in
• - - Manufacturers Literature (Operating Instructions 4822 872 30391 (900101))

• Author
• Model page created by Damian Roter. See "Data change" for further contributors.
