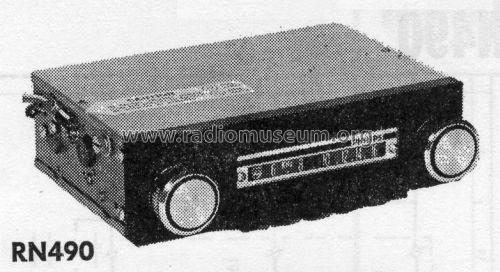

RN490
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1969
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 230218
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: RN490 - Philips Australia
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 7 x 2 x 5 inch / 178 x 51 x 127 mm
- Notes
-
Push button tuning version of Model RN390.
- Price in first year of sale
- 64.95 AUS $
- Literature/Schematics (1)
- - - Manufacturers Literature (Philips Service Notes for Models RN390 & RN490, July 1970.)
- Literature/Schematics (2)
- J.R. Publications Car Radio Service Handbook (Group G7, Dec 1970, Page P7.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
