Rosette L0X20T /00G /00L /00R /22G /22L /22R

Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 169143) Radio

Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 169144) Radio

Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 169142) Radio

Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 169141) Radio

Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 1997615) Radio

Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 1997616) Radio

Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 1997617) Radio

Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 1997618) Radio

Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 1997619) Radio
Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 236671) Radio Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 677623) Radio
Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 677624) Radio Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 3344) Radio
Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 3345) Radio Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 3348) Radio
Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 186587) Radio Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 186589) Radio
Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 186590) Radio Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 236670) Radio
Use red slider bar for more.
Rosette L0X20T /00G /00L /00R /22G /22L /22R; Philips; Eindhoven (ID = 236671) Radio

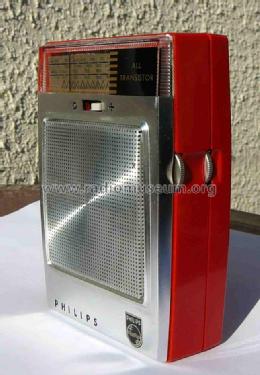

Philips; Eindhoven: Rosette L0X20T /00G /00L /00R /22G /22L /22R [Radio] ID = 236671 535x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rosette L0X20T /00G /00L /00R /22G /22L /22R, Philips; Eindhoven (tubes international!); Miniwatt:
L'appareil lui même.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF126 AF127 AF127 AC125 AC132 AC127 AA119 AA119 BA100
Main principle Superheterodyne (common); ZF/IF 452 or 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.14 W (unknown quality)
from Radiomuseum.org Model: Rosette L0X20T /00G /00L /00R /22G /22L /22R - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 69 x 101 x 30 mm / 2.7 x 4 x 1.2 inch
Notes

2 Farben: onyxschwarz oder perlgrau. ZF: 460 oder 452 kHz (abhängig von der Ausführung).

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Source of data Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb
Literature/Schematics (1) -- Schematic


All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 4981 models, 4168 with images and 3323 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
