• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 229964

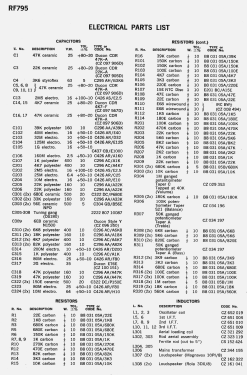

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors
• BF194 BF195 BF195 BC179 BC179 BC108 BC108 BC178 BC178 AC127 AC127 AD161 AD161 AD162 AD162 AC128 AA119 AA119 BY126 BY126 BZY88

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 5 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 220-250 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 12 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Scattergram RF795 - Philips Australia

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Stereo radiogram with separate speaker boxes.  Each box has a 10" woofer and a 3" tweeter.

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
