• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1958 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 105053

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECH4 ECC81 EZ2

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

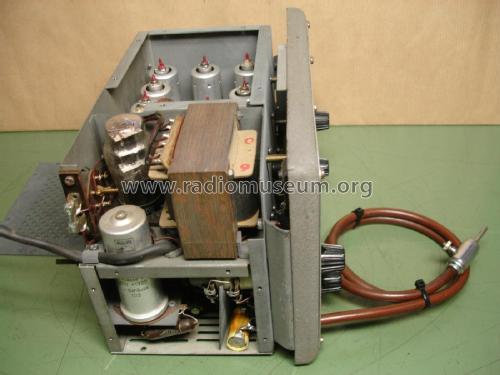

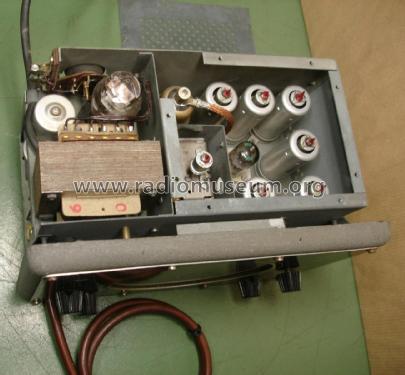

• Model: Service Oszillator GM2884 /D - GM2884 /20 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 250 x 190 x 180 mm / 9.8 x 7.5 x 7.1 inch

• Notes

• Frequenzbereich 100 kHz bis 45 MHz, abschaltbare Amplitudenmodulation 400 Hz.

  Deutsch beschriftet.

  Frontseite mit Typenangabe "GM 2884/D" - Rückseite mit "GM2884/20".

  Vergleiche mit dem  Philips Service Oszillator GM2884/20 aus 1949 (Auf Front & Rückseite!).

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Price in first year of sale
• 595.00 DM

• Mentioned in
• - - Manufacturers Literature (Katalog Hermann Kaets, Berlin, 1958)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
