Service-Stereo-Coder PM6455
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1968 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 133946
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Service-Stereo-Coder PM6455 - Philips; Eindhoven tubes
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 235 x 175 x 200 mm / 9.3 x 6.9 x 7.9 inch
- Notes
- Der Service-Stereo-Coder PM6455 ist ein Generator für den Abgleich der Pilotton- und Hilfsträgerkreise von Dekodern in Stereogeräten. Manufacturer Philips Eindhoven, The Netherlands, made in Hamburg, Germany. This model was also sold in a number of other countries.
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
- Other Models
-
Here you find 5230 models, 4363 with images and 3442 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Collections
The model Service-Stereo-Coder is part of the collections of the following members.
Forum contributions about this model: Philips; Eindhoven: Service-Stereo-Coder PM6455
Threads: 1 | Posts: 1

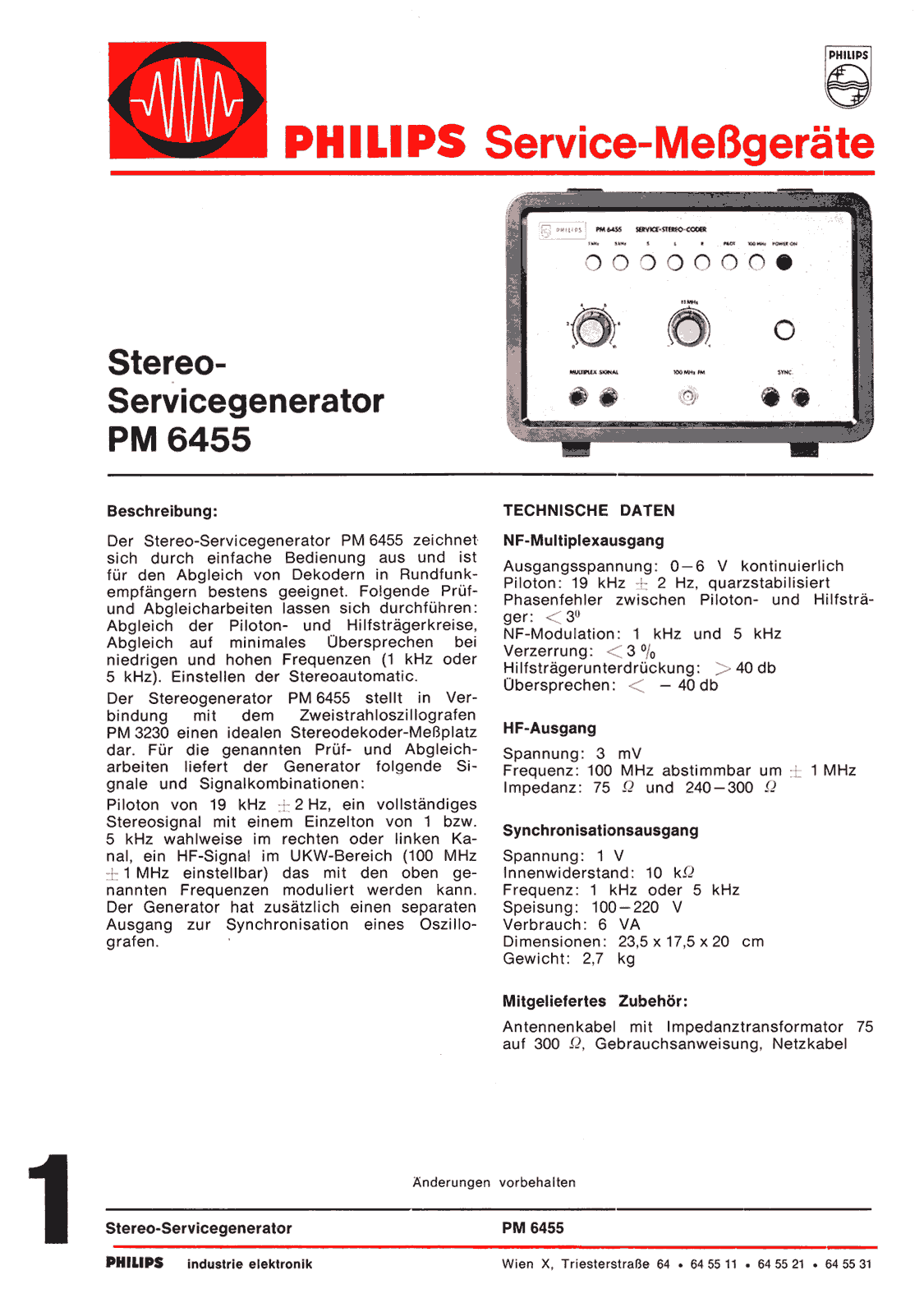

In der Anlage das Datenblatt des PM6455.
MfG. WB.
Attachments
- Datenblatt PM6455 (77 KB)
Wolfgang Bauer, 20.Jul.08
