Verstärkerkoffer SK65 AG4456 F/22

Verstärkerkoffer SK65 AG4456 F/22; Philips Radios - (ID = 2322700) R-Player Verstärkerkoffer SK65 AG4456 F/22; Philips Radios - (ID = 2322703) R-Player
Verstärkerkoffer SK65 AG4456 F/22; Philips Radios - (ID = 2322698) R-Player Verstärkerkoffer SK65 AG4456 F/22; Philips Radios - (ID = 2322705) R-Player
Verstärkerkoffer SK65 AG4456 F/22; Philips Radios - (ID = 2322704) R-Player Verstärkerkoffer SK65 AG4456 F/22; Philips Radios - (ID = 2602312) R-Player
Verstärkerkoffer SK65 AG4456 F/22; Philips Radios - (ID = 2602313) R-Player Verstärkerkoffer SK65 AG4456 F/22; Philips Radios - (ID = 2299090) R-Player
Verstärkerkoffer SK65 AG4456 F/22; Philips Radios - (ID = 457472) R-Player
Use red slider bar for more.
Verstärkerkoffer SK65 AG4456 F/22; Philips Radios - (ID = 2322700) R-Player
Philips Radios -: Verstärkerkoffer SK65 AG4456 F/22 [R-Player] ID = 2322700 1400x931
Select picture or schematic to display from thumbnails on the right and click for download.
For model Verstärkerkoffer SK65 AG4456 F/22, Philips Radios - Deutschland:
Eigenes Bild, eigenes Gerät

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1961–1963 perfect model Category: Sound/Video Recorder and/or Player
Valves / Tubes 2: UCL82 UY85
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110-127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Verstärkerkoffer SK65 AG4456 F/22 - Philips Radios - Deutschland
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 353 x 250 x 176 mm / 13.9 x 9.8 x 6.9 inch
Notes
  • Geschwindigkeiten: 16, 33, 45, 78 U/min
  • Duplo-Stereo-Kristall-System AG3302, Frequenzbereich 30-15000 Hz.
  • 2 Farben: elfenbein/schwarz und elfenbein/weinrot
  • ähnliches Modell: Luxus-Cocktail AG4456
  • Späteres Modell: Electrophon SK65
Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Price in first year of sale 199.00 DM
External source of data Erb

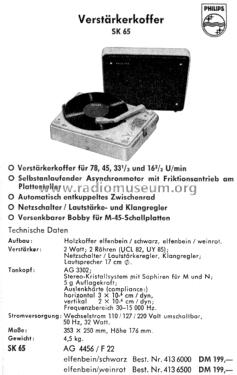

Source of data HdB d.Rdf-& Ferns-GrH 1961/62
