Skyliner Mark II FM Stereo Radio Cassette D6638 /00

Philips, Singapore

  • Year
  • 1983 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 138653

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 10700 kHz
  • Wave bands
  • FM Broadcast Band Only
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Dry Batteries / 3 Volt
  • Loudspeaker
  • - only for Earphone!
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Skyliner Mark II FM Stereo Radio Cassette D6638 /00 - Philips, Singapore
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 165 x 87 x 32 mm / 6.5 x 3.4 x 1.3 inch
  • Notes

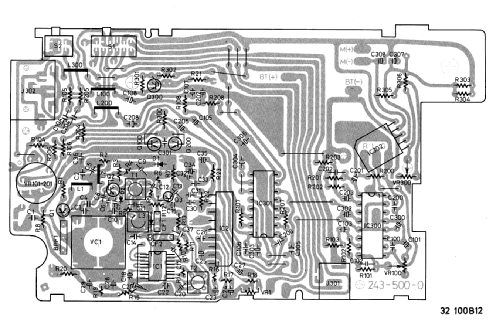

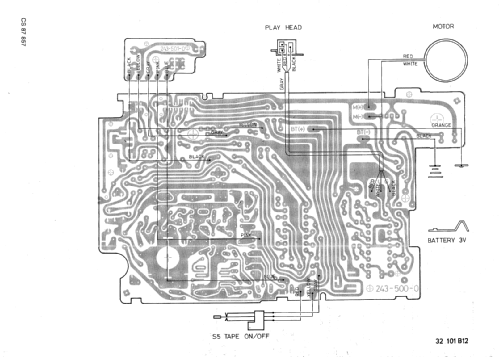

  • FM Stereo Cassette Player, Made in Singapore. Nr. FF 0032734285, Platine PNE-1 243-500-0, Motor: KTA Japan 5E-3 V7X 8304E, Tonkopf: BR18 3E10T, LED für Stereo-Empfang und Batterie/PLay, Ösen für Trageriemen, 2 x LR6 oder extern 3 V DC.

    Andere Ausführung; D6638 /01.

  • Net weight (2.2 lb = 1 kg)
  • 0.2 kg / 0 lb 7 oz (0.441 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Alfred Przybilla. See "Data change" for further contributors.
