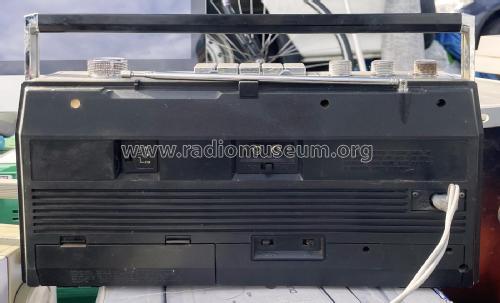

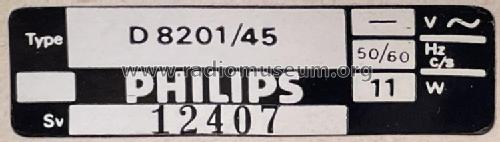

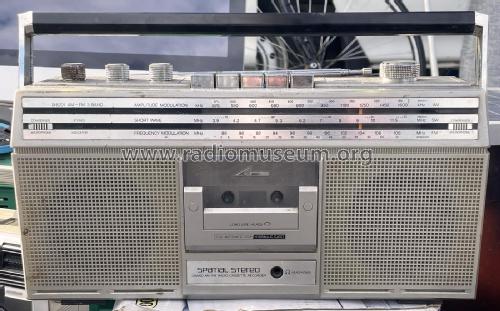

Spatial Stereo 3 Band AM-FM Radio Cassette Recorder D8201 /45
Philips Electronics Singapore Pte Ltd.; Singapore
- Country
- Singapore
- Manufacturer / Brand
- Philips Electronics Singapore Pte Ltd.; Singapore
- Year
- 1981/1982
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 363886
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 50-60 Hz, 110-127; 220-240 / D: 4 x 1.5 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 10 cm = 3.9 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Spatial Stereo 3 Band AM-FM Radio Cassette Recorder D8201 /45 - Philips Electronics Singapore
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 395 x 185 x 100 mm / 15.6 x 7.3 x 3.9 inch
- Notes
-
Portable MW/SW/FM stereo radio cassette recorder. 2 x 2 W RMS (For Australia).
Frequency range:
MW 520 - 1605 kHz
SW 3.9 - 12 MHz
FM 87.5 - 108 MHzSee also Model D8201 /00
- Price in first year of sale
- 119.00 AUS $
- Mentioned in
- Mingay's Price Service (Aug 1981 to Aug 1982.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Service Manual 4822 725 14104)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
