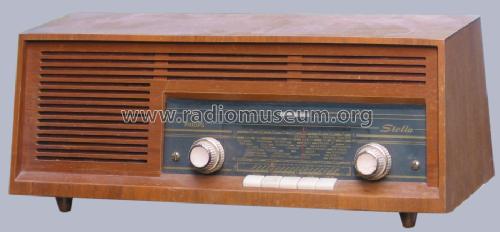

Stella 324 B3D24A; Philips Radios - (ID = 670640) Radio
Philips Radios -: Stella 324 B3D24A [Radio] ID = 670640 933x433
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stella 324 B3D24A Nussbaum, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1962–1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL86 EM84
Semiconductors (the count is only for transistors) B250C75
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Stella 324 B3D24A [Nussbaum] - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 190 x 175 mm / 18.9 x 7.5 x 6.9 inch
Notes
Net weight (2.2 lb = 1 kg) 4.3 kg / 9 lb 7.5 oz (9.471 lb)
Price in first year of sale 319.00 DM
Collectors' prices
External source of data Ernst Erb, HB9RXQ
Source of data Handbuch VDRG 1962/1963


All listed radios etc. from Philips Radios - Deutschland
Here you find 2482 models, 2194 with images and 1497 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips Radios -: Stella 324 B3D24A
Threads: 1 | Posts: 1
Hits: 1667     Replies: 0
philips: B3D24A; Stella 324 , Anodenspannung
Karlheinz Fischer
02.Mar.13
  1

Schlechter, verzerrter UKW-Empfang !

Anodenspannung zu gering, statt 205 V nur 152 V. Abhlife: schadhafter Selengleichrichter , mit 4 Siliziumdioden in Brücke geschaltet und ermittelter Vorwiederstand konnte das Problem beseitigt werden.

K.F.
