• Country
• People's Republic of China

• Manufacturer / Brand
• Philips 飞利浦; China

• Year
• 1990

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 242054

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BC548 BC548 BC548 BC548 BC548 TEA5591 AN7411 AN7312 TA7769

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / D: 6 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 8 cm = 3.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

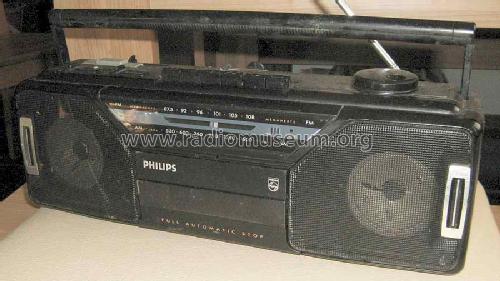

• Model: Stereo Radio Cassette Recorder AQ5190 /20 /21 /40 - Philips 飞利浦; China

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 390 x 135 x 120 mm / 15.4 x 5.3 x 4.7 inch

• Notes

• Built-in microphone. Headphone jack.

  Made in China.

  Different versions might have a voltage switch present and/or different wave bands.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Mentioned in
• - - Manufacturers Literature (User manual AQ5190, AQ5191, AQ5192)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
