Stereo radio recorder TURBO-BASS AW7594 /05

Philips, Singapore

Data
Forum
Pictures
Collections

  • Year
  • 1991–1993
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 310885

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 21
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 8 x 1,5 Volt
  • Loudspeaker
  • 5 Loudspeakers
  • Power out
  • 32 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo radio recorder TURBO-BASS AW7594 /05 - Philips, Singapore
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 620 x 244 x 195 mm / 24.4 x 9.6 x 7.7 inch
  • Notes

  • Doppelcassettendeck, HS - Dubbing.
    Graphic Equalizer.
    Bass Boost Lautsprecher.

    Transistoren teilweise mehrfach.

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Mentioned in

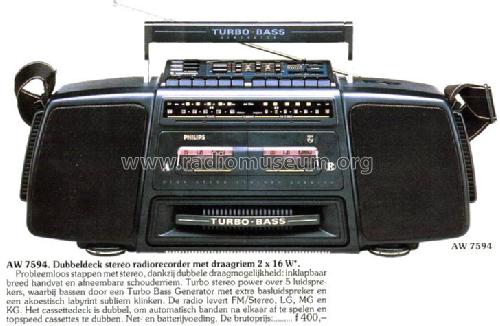

  • -- Original prospect or advert
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
