Stereo Receiver 915 22AN915/22

Stereo Receiver 915 22AN915/22; Philips Radios - (ID = 758587) Car Radio Stereo Receiver 915 22AN915/22; Philips Radios - (ID = 2003781) Car Radio

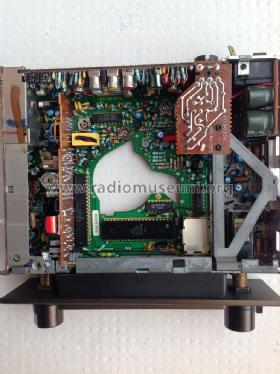

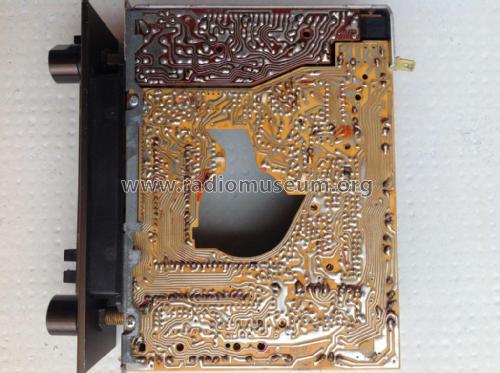

Stereo Receiver 915 22AN915/22; Philips Radios - (ID = 2003782) Car Radio
Use red slider bar for more.

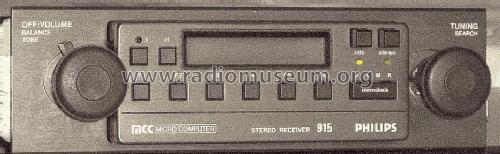

Stereo Receiver 915 22AN915/22; Philips Radios - (ID = 758587) Car Radio
Philips Radios -: Stereo Receiver 915 22AN915/22 [Car Radio] ID = 758587 933x288
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Receiver 915 22AN915/22, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1981–1983 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 12 W (unknown quality)
from Radiomuseum.org Model: Stereo Receiver 915 22AN915/22 - Philips Radios - Deutschland
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 176 x 43 x 110 mm / 6.9 x 1.7 x 4.3 inch
Notes The AN915 is a stereo FM car radio with 49 meter shortwave band. In this model-type MCC,( microcomputer), was introduced, with memory for 60 frequencies, and with AST for automatic radio-signal-scan. Of course many diodes, transistors and integrated circuits are present.
Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Price in first year of sale 995.00 NLG
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Jan Terranea. See "Data change" for further contributors.
