For model Stereo-Tonbandgerät EL3534A /00 /00A, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1962 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 17: OC58 OC58 OC58 OC58 OC75 OC75 OC44 OC44 OC75 OC75 OC75 OC75 OC74 OC74 OC26 OC26 OC79 OA70 OA70
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 245 Volt
Loudspeaker 3 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Stereo-Tonbandgerät EL3534A /00 /00A - Philips; Eindhoven tubes
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 269 x 390 mm / 16.5 x 10.6 x 15.4 inch
Notes

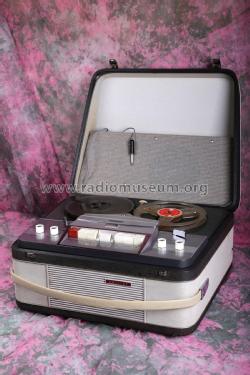

Stereo Tape Recorders EL3534A /00 and EL3534A /00A.

Version /00 has 3 loudspeakers AD3574M.
Version /00A has only 2 loudspeakers: 1x AD3574M in the housing and 1x AD1720 in the lid for the right channel.

Tracks: 4 (2 in each direction).
4 Speed: 2,4 - 4,75 - 9,5 - 19 cm/sec.
Motor(s): 1.
Reel diameter: up to 18 cm (7").
S/N ratio: 40dB or better.
Frequency response and tape speed:

  • 2,4 cm/sec: 60 - 4500Hz.
  • 4,75 cm/sec: 60 - 10000Hz.
  • 9,5 cm/sec: 60 - 15000Hz.
  • 19 cm/sec: 60 - 16000Hz.

Inputs (all stereo):

  • (Bu1, DIN) Line-in, radio: 2mV / 20kΩ.
  • (Bu2, DIN) Gramophone: 100mV / 680kΩ.
  • (Bu3, Philips flat connector) Gramophone: 100mV / 680kΩ.
  • (Bu4, DIN) Microphone: 0,5mV / 5kΩ.

Outputs (all stereo):

  • (Bu1, DIN) Line-out, radio: 1V / 18kΩ.
  • (Bu5, DIN) Headphones.
  • Banana plug connectors for external loudspeaker(s) with automatic cut-off of internal loudspeaker(s).

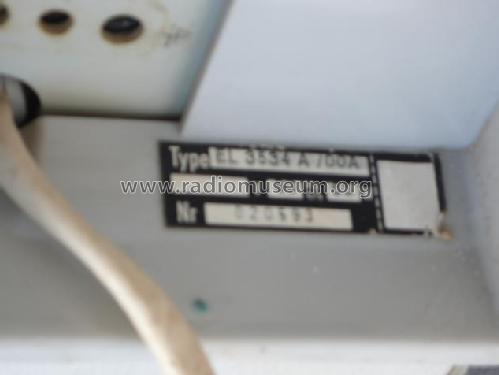

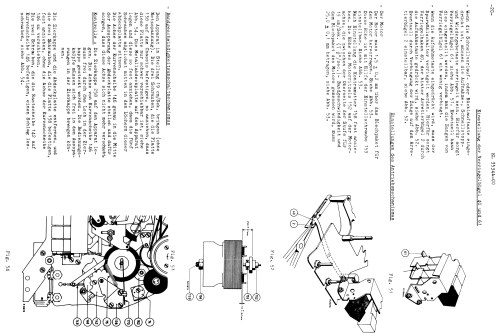

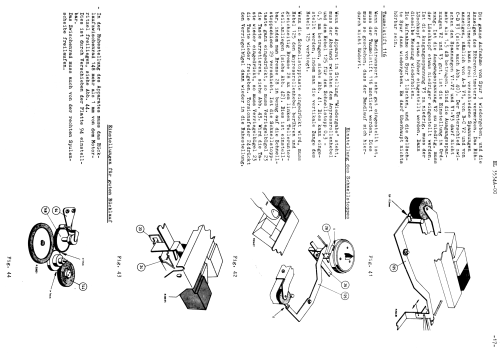

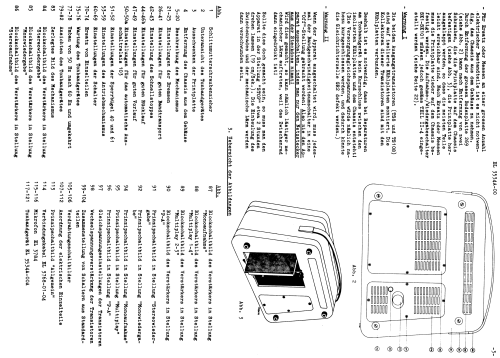

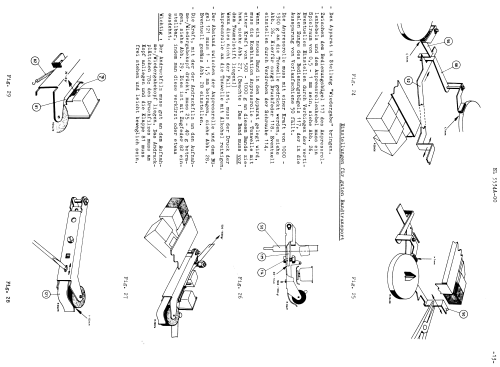

There are 6 successive modified versions of these models: WR-00 ... WR05, which are mentioned on the type plate in that case. The uploaded service manual is valid for versions WR-00 and WR-01. More info about all modifications and errata can be found in the PDF file at the bottom of this page.

  • WR-00: original version.
  • WR-01: identical to WR-00 except for a new rewind mechanism.
  • WR-02: differences to WR-01 described on page 4 of service manual.
  • WR-03: identical to WR-02 except for new switches SK11, 12, 13 and 14. See extension manual page 2 and 3 at the bottom of this page.
  • WR-04: identical to WR-03 except for a new SK12 switch mechanism.
  • WR-05: new tape speed switch.
Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)
Collectors' prices
Literature/Schematics (1) -- Original-techn. papers.
Documents about this model
  Modifications Philips model EL3534A 1741 KB

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
