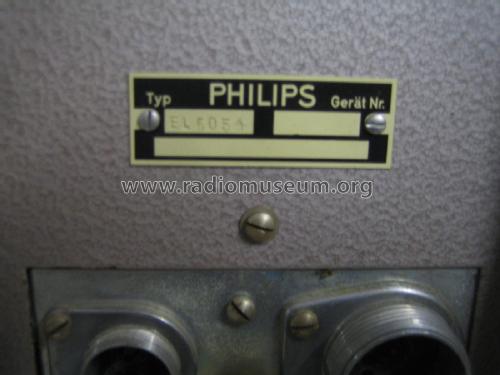

Stromversorgung für Kondensatormikrofone EL6054 (Netzteil)
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1953 ??
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 358567
-
- Brand: Deutsche Philips-Ges.
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Stromversorgung für Kondensatormikrofone EL6054 - Philips Radios - Deutschland
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 120 x 135 x 200 mm / 4.7 x 5.3 x 7.9 inch
- Notes
-
Stromversorgung für Philips (Schoeps) Kondensatormikrofone, z.B. Type EL6052 mit Kapsel EL6051.
Ausgangsspannungen: 150 V für Anode/Polarisation und DC 5,8 V für Heizung. Die NF vom Mikrofon kommend wird im Netzgerät auf 3-pol Ausgangsbuchse durchgeschleift.
Gehäusefarbe: Hammerschlag grau
Fertigung Schoeps für Philips.
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- Author
- Model page created by Hartmut Fischer. See "Data change" for further contributors.
