Studio Colour TV Camera LDK1 - PC60 - EL8521 /00

Philips; Eindhoven (tubes international!); Miniwatt

  • Year
  • 1964 ?
  • Category
  • Television-Camera (Broadcast, professional) and studio engineering
  • ID
  • 291516

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110-234 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from
  • Model: Studio Colour TV Camera LDK1 - PC60 - EL8521 /00 - Philips; Eindhoven tubes
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 356 x 483 x 508 mm / 14 x 19 x 20 inch
  • Notes
  • Studio Color TV camera LDK1 (PC60)

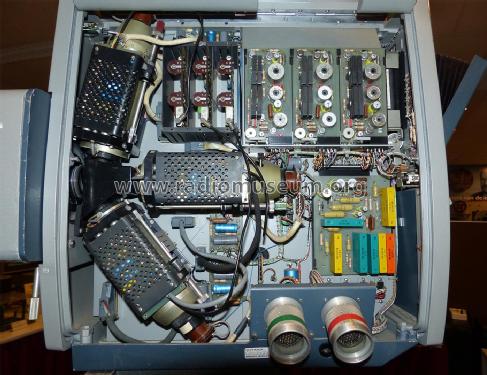

    This camera head features a zoom lens with external zoom indicator, a prism for splitting the three sub-images and three plumbicon sensors. The camera head is connected via two cables to the Camera Control Unit (CCU) EL8526 with control panel that is located in the control room.

    The camera was also marketed by Norelco, Peto Scott and Pye.

    Studio Farbfernsehkamera LDK1 (PC60)

    Diese Kamera ist mit einem Zoom-Objektiv mit aussenliegender Zoom-Einstellungsanzeige, einem Prisma für die Abspaltung der drei Teilbilder und drei Plumbicon-Aufnahmeröhren ausgestattet. Sie wird über zwei Kabel an eine separate Kamerasteuereinheit (CCU) EL8526 angeschlossen, die sich in einem Kontrollraum befindet.

    Die Kamera wurde auch unter den Marken Norelco, Peto Scott und Pye vermarktet.
