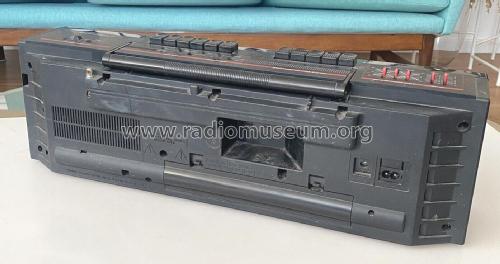

Super Tandem D8169 /10

Philips, Singapore

Data
Forum
Pictures
Collections

  • Year
  • 1986 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 364154

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 50-60 Hz, 120; 220; 240 / C: 8 x 1.5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Super Tandem D8169 /10 - Philips, Singapore
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 540 x 165 x 140 mm / 21.3 x 6.5 x 5.5 inch
  • Notes

  • Australian model

    Twin cassette with high-speed dubbing, amplifier with 3-band graphic equaliser, recorder with continuous play (automatic switching from deck A to deck B), counter, headphone jack, loudspeaker: 2-way system.

    Tuning range:
    MW 520 - 1606 kHz
    SW 3.95 - 12 MHz
    FM 87.5 - 108 MHz

    See also:
    D8169 /01
    D8169 /02 (Germany)
    D8169 /01R
    D8169 /02R (Germany)
    D8169 /10R (Australia)

  • Literature/Schematics (1)
  • -- Original-techn. papers. (Service Manual, 4822 725 21083)
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
