Susette L2X21T

Susette L2X21T; Philips; Eindhoven (ID = 115941) Radio

Susette L2X21T; Philips; Eindhoven (ID = 386855) Radio

Susette L2X21T; Philips; Eindhoven (ID = 386845) Radio

Susette L2X21T; Philips; Eindhoven (ID = 386850) Radio

Susette L2X21T; Philips; Eindhoven (ID = 386842) Radio
Susette L2X21T; Philips; Eindhoven (ID = 114434) Radio Susette L2X21T; Philips; Eindhoven (ID = 1223792) Radio
Susette L2X21T; Philips; Eindhoven (ID = 1223794) Radio Susette L2X21T; Philips; Eindhoven (ID = 1223795) Radio
Susette L2X21T; Philips; Eindhoven (ID = 1223797) Radio Susette L2X21T; Philips; Eindhoven (ID = 1223798) Radio
Susette L2X21T; Philips; Eindhoven (ID = 1223799) Radio Susette L2X21T; Philips; Eindhoven (ID = 1224536) Radio
Use red slider bar for more.

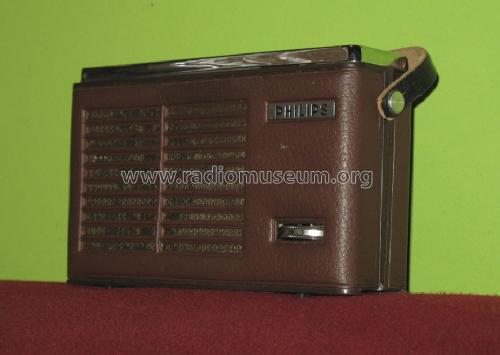

Susette L2X21T; Philips; Eindhoven (ID = 114434) Radio
Philips; Eindhoven: Susette L2X21T [Radio] ID = 114434 248x231
Select picture or schematic to display from thumbnails on the right and click for download.
For model Susette L2X21T, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1962–1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF117 AF117 AF117 OC81 OC81 OC81
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Susette L2X21T - Philips; Eindhoven tubes
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 175 x 110 x 45 mm / 6.9 x 4.3 x 1.8 inch
Notes According to the first digit after the X (for made in the Netherlands) the Philips model L2X21T was made in 1962. But it can well be that it was sold out in Germany in 1966.
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Source of data Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb
