• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118911

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF116 AF117 AF117 OC75 OC74 OC140

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

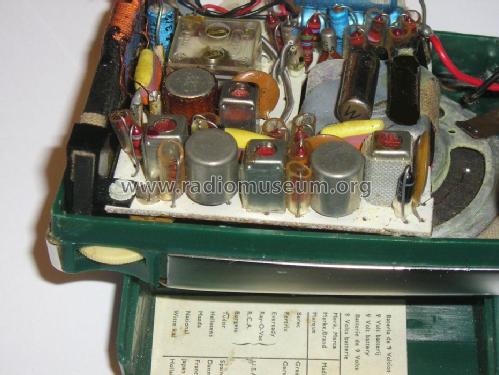

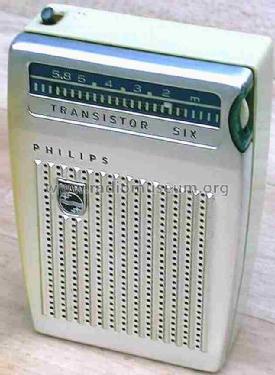

• Model: Transistor Six L0X10T /00S - Philips; Eindhoven tubes

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 65 x 95 x 30 mm / 2.6 x 3.7 x 1.2 inch

• Notes

• MW: 185 - 580 m (1622 - 517 kc/s).

  The original service document states OC170, OC169, OC169, OC75, OC74, OC140, and OA95 as transistor line-up, however this is erroneous (see documents).

• Net weight (2.2 lb = 1 kg)
• 0.145 kg / 0 lb 5.1 oz (0.319 lb)

• Price in first year of sale
• 69.00 DM

• Mentioned in
• "HOBBY" 1963

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Thorsten Brandenburg. See "Data change" for further contributors.
