Transistor-Steuergerät AM/FM Stereo 22 RF 985 /83

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 269381

• • Brand: Deutsche Philips-Ges.

• Picture

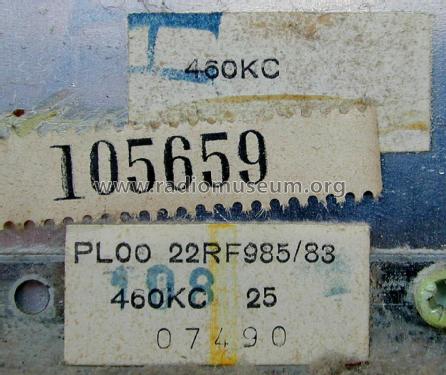

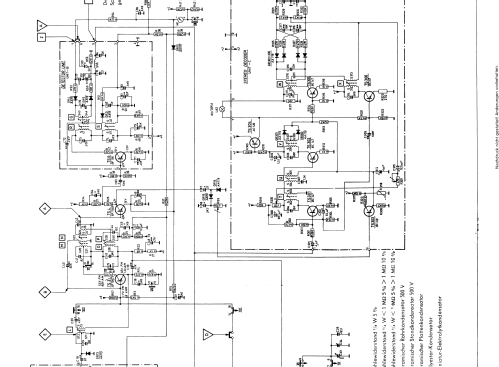

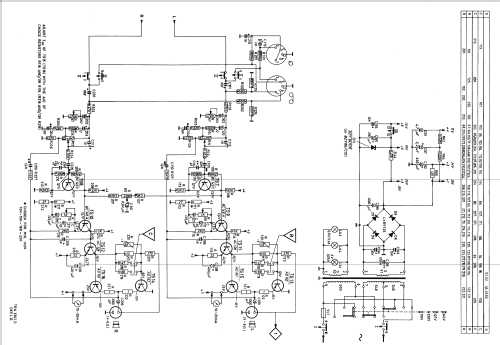

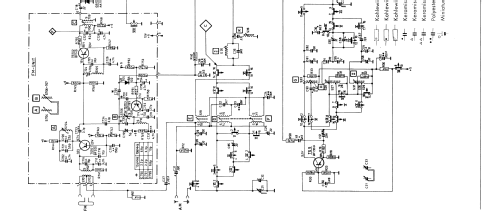

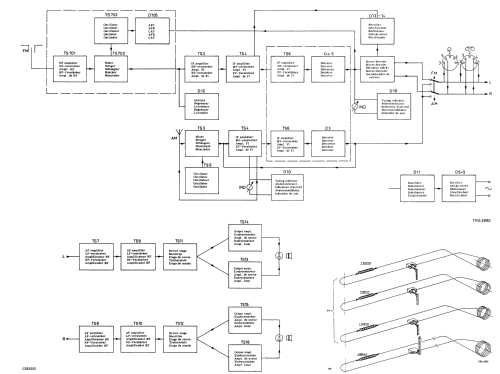

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors
• BF194 BF194 BF195 BF195 BC149 BC149 BC148 BC148 AC128 AC128 AD161 AD161 AD162 AD162 BC147 BC147 BC149 BC158 BC147 BC147 BF200 BF194 BF195 AA119 BY126 BZY94 BA102

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 12.2 W (max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Transistor-Steuergerät AM/FM Stereo 22 RF 985 /83 - Philips Radios - Deutschland

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 517 x 108 x 190 mm / 20.4 x 4.3 x 7.5 inch

• Notes

• Philips Einbauchassis 22RF 985/83

  Wellenbereiche:
  UKW:	87,5	-	104	MHz
  KW:	6	-	10	MHz
  MW  I:	512	-	1410	kHz
  MW II:	1400	-	1620	kHz
  LW:	150	-	375	kHz



• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Mentioned in
• -- Schematic

• Author
• Model page created by a member from D. See "Data change" for further contributors.
