Travel Radio Clock D-1868

Travel Radio Clock D-1868; Philips Hong Kong (ID = 1479838) Radio Travel Radio Clock D-1868; Philips Hong Kong (ID = 1479841) Radio
Travel Radio Clock D-1868; Philips Hong Kong (ID = 1479843) Radio Travel Radio Clock D-1868; Philips Hong Kong (ID = 1479845) Radio
Travel Radio Clock D-1868; Philips Hong Kong (ID = 1680599) Radio
Use red slider bar for more.

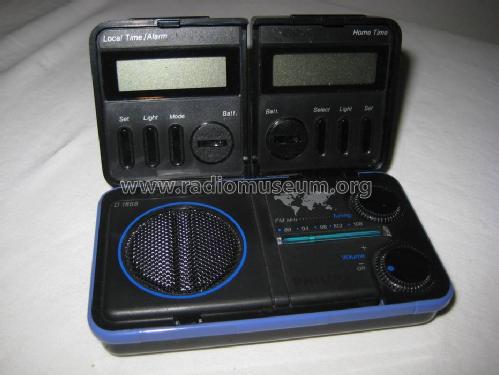

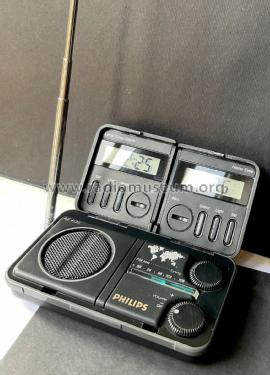

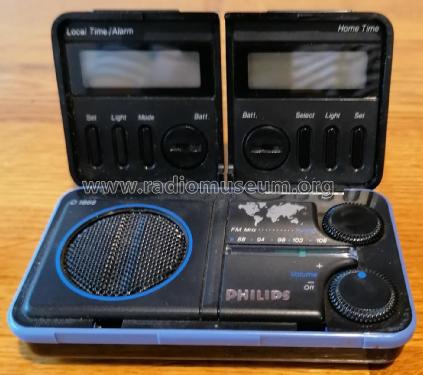

Travel Radio Clock D-1868; Philips Hong Kong (ID = 1479838) Radio
Philips Hong Kong: Travel Radio Clock D-1868 [Radio] ID = 1479838 501x490
Select picture or schematic to display from thumbnails on the right and click for download.
For model Travel Radio Clock D-1868, Philips Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  Philips Hong Kong
Year: 1986 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 10700 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Batteries / addl. power jack / 2 x 1.5 / ? Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Travel Radio Clock D-1868 - Philips Hong Kong
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 100 x 60 x 30 mm / 3.9 x 2.4 x 1.2 inch
Notes

Made in Hong Kong.

Net weight (2.2 lb = 1 kg) 0.135 kg / 0 lb 4.8 oz (0.297 lb)

Model page created by Rudolf Nemeth. See "Data change" for further contributors.



All listed radios etc. from Philips Hong Kong
Here you find 65 models, 64 with images and 23 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
