Trendsetter RL270

Trendsetter RL270; Philips Australia (ID = 1252852) Radio
Use red slider bar for more.
Trendsetter RL270; Philips Australia (ID = 1252852) Radio
Philips Australia: Trendsetter RL270 [Radio] ID = 1252852 394x350
Select picture or schematic to display from thumbnails on the right and click for download.
For model Trendsetter RL270, Philips Australia:

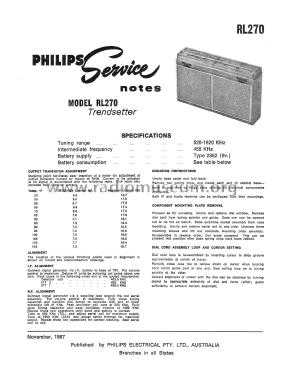

Philips RL270 from service manual front cover.

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: BF184 or. BF194 BF185 or. BF195 BF185 or. BF195 BC108 AC128 AC188 AC187 AA119 AA119
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Trendsetter RL270 - Philips Australia
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6.425 x 4.09 x 1.625 inch / 163 x 104 x 41 mm
Notes

Plastic case in Caviar Black/Almond Grey with leather look carrying case.

Price in first year of sale 49.95 AUS $
Literature/Schematics (1) - - Manufacturers Literature (Philips Service Notes, November 1967.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
