Two Band Radio D1240

Two Band Radio D1240; Philips Radios - (ID = 685577) Radio Two Band Radio D1240; Philips Radios - (ID = 685575) Radio
Two Band Radio D1240; Philips Radios - (ID = 685576) Radio Two Band Radio D1240; Philips Radios - (ID = 2048332) Radio
Two Band Radio D1240; Philips Radios - (ID = 2048333) Radio Two Band Radio D1240; Philips Radios - (ID = 2048334) Radio
Two Band Radio D1240; Philips Radios - (ID = 2048335) Radio Two Band Radio D1240; Philips Radios - (ID = 2048336) Radio
Two Band Radio D1240; Philips Radios - (ID = 2063917) Radio Two Band Radio D1240; Philips Radios - (ID = 2063918) Radio
Use red slider bar for more.

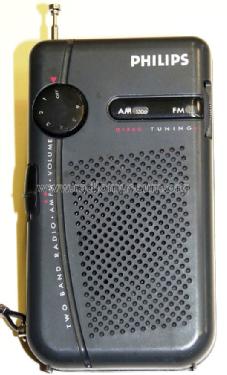

Two Band Radio D1240; Philips Radios - (ID = 685577) Radio
Philips Radios -: Two Band Radio D1240 [Radio] ID = 685577 533x880
Select picture or schematic to display from thumbnails on the right and click for download.
For model Two Band Radio D1240, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1982 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Two Band Radio D1240 - Philips Radios - Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 80 x 143 x 32 mm / 3.1 x 5.6 x 1.3 inch
Notes Für den UKW-Eingang werden 2 Transistoren verwendet, 1 LIN-IC für AM-V, AM/FM-ZF + NF, Kopfhöreranschluß über 3,5 mm Klinkenbuchse, Teleskopantenne 46 cm, Ferrit 5,5 cm
Net weight (2.2 lb = 1 kg) 0.240 kg / 0 lb 8.5 oz (0.529 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
