• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1972 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 313327

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage

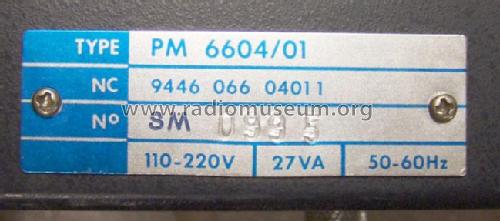

• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

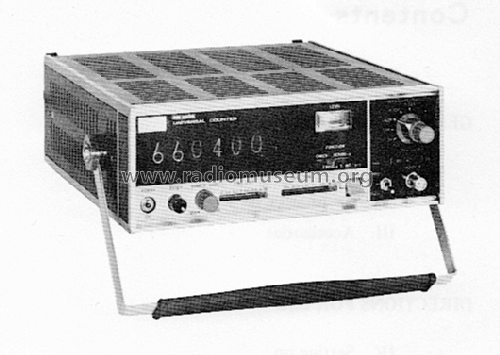

• Model: Universal Counter PM6604 /01 - Philips; Eindhoven tubes

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 268 x 93 x 293.5 mm / 10.6 x 3.7 x 11.6 inch

• Notes

• 50 MHz Frequenzzähler, Anzeige über 6-stelliges Nixie-Display.

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Author
• Model page created by Michael Schnellmann. See "Data change" for further contributors.
