Universal Measurement Device GM4256
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1939 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 311610
Hersteller-Unterlagen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 250 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case, TUBES VISIBLE
- from Radiomuseum.org

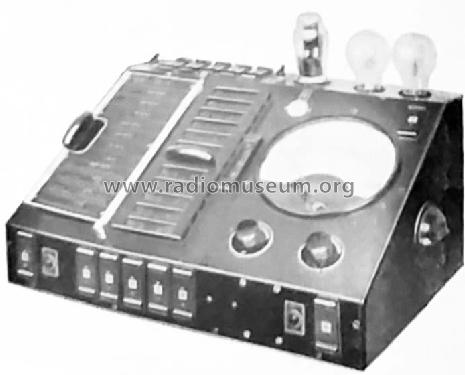

- Model: Universal Measurement Device GM4256 - Philips; Eindhoven tubes
- Shape
- Tablemodel, slant panel.
- Dimensions (WHD)
- 500 x 380 x 250 mm / 19.7 x 15 x 9.8 inch
- Notes
-
Possible to measure AC/DC voltage and current, electrolit and standard capacitors, their leakage, resistors, isolation of transformators and poin-to-point measurements.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Gabriel Toth. See "Data change" for further contributors.
