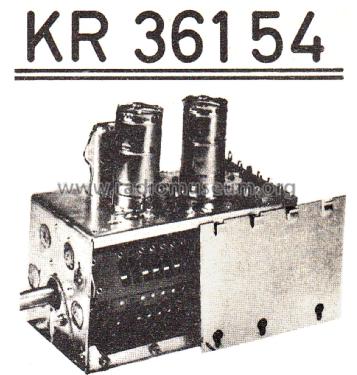

VHF Kanalwähler - VHF Channel Selector KR 361 54

Philips Radios - Deutschland

Data
Forum
Pictures
Collections

  • Year
  • 1959
  • Category
  • Radio module post 1925 (not a part, not a key)
  • Radiomuseum.org ID
  • 272270
    • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Number of Transistors
  • Semiconductors
  • OA70
  • Main principle
  • Superheterodyne (common); ZF/IF 38900 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: VHF Kanalwähler - VHF Channel Selector KR 361 54 - Philips Radios - Deutschland
  • Shape
  • Chassis only or for «building in»
  • Notes

  • Antenna 240 Ω sym. or 60 Ω asym.

    VHF Band I and III (drum selector with 12 detent positions; channels 2 to 11 plus two reserved)

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
