VHF Kanalwähler - VHF Channel Selector A3 300 40

VHF Kanalwähler - VHF Channel Selector A3 300 40; Philips Radios - (ID = 1893330) mod-past25

VHF Kanalwähler - VHF Channel Selector A3 300 40; Philips Radios - (ID = 1893331) mod-past25
VHF Kanalwähler - VHF Channel Selector A3 300 40; Philips Radios - (ID = 1893325) mod-past25
Use red slider bar for more.
VHF Kanalwähler - VHF Channel Selector A3 300 40; Philips Radios - (ID = 1893325) mod-past25
Philips Radios -: VHF Kanalwähler - VHF Channel Selector A3 300 40 [mod-past25] ID = 1893325 933x656
Select picture or schematic to display from thumbnails on the right and click for download.
For model VHF Kanalwähler - VHF Channel Selector A3 300 40, Philips Radios - Deutschland:
Picture from Philips manual

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1959 ? Category: Radio module post 1925 (not a part, not a key)
Valves / Tubes 2: PCC88 PCF80
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: VHF Kanalwähler - VHF Channel Selector A3 300 40 - Philips Radios - Deutschland
Material Metal case
Shape Chassis only or for «building in»
Notes

12 Kanal Cascode Trommelwähler mit gedruckten Spulenstreifen und Memomatik.

12 channel Cascode drum selector with printed strips coils and Memomatik.

Antenne 240 Ω sym; 60 Ω asym.

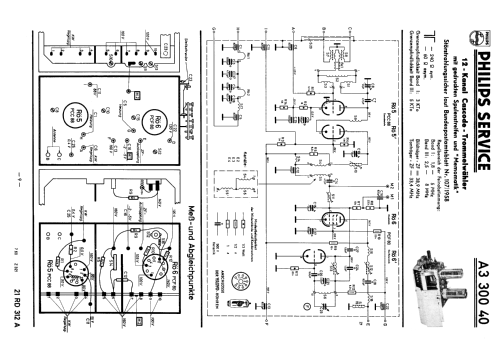

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
