VHF/UHF Mobile Transceiver FM1000 FM1100

VHF/UHF Mobile Transceiver FM1000 FM1100; Philips Electrical, (ID = 2289027) TRX VHF/UHF Mobile Transceiver FM1000 FM1100; Philips Electrical, (ID = 2289028) TRX
VHF/UHF Mobile Transceiver FM1000 FM1100; Philips Electrical, (ID = 2289029) TRX VHF/UHF Mobile Transceiver FM1000 FM1100; Philips Electrical, (ID = 2289030) TRX
Use red slider bar for more.
VHF/UHF Mobile Transceiver FM1000 FM1100; Philips Electrical, (ID = 2289027) TRX

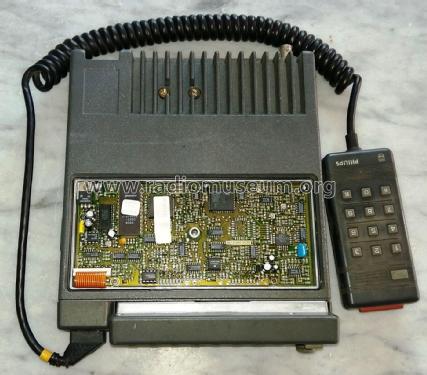

Philips Electrical,: VHF/UHF Mobile Transceiver FM1000 FM1100 [TRX] ID = 2289027 1400x1061
Select picture or schematic to display from thumbnails on the right and click for download.
For model VHF/UHF Mobile Transceiver FM1000 FM1100, Philips Electrical, Lamps, Industrial - Miniwatt; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1989–1998 Category: Transmitter & Receiver (TRX not Amateur)
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 3 W (undistorted)
from Radiomuseum.org Model: VHF/UHF Mobile Transceiver FM1000 FM1100 - Philips Electrical, Lamps,
Dimensions (WHD) 180 x 60 x 210 mm / 7.1 x 2.4 x 8.3 inch
Notes

A vehicular transceiver for commercial uses, in Italy under license of "Ministero delle Poste e Telecomunicazioni", in GB under license by OFcom.
Governed by microprocessors. All programmable with specific PCB and software.
Possible to use simplex mobile to mobile or duplex two frequencies via repeater or base station.

Frequency range: 68 to 520 MHz.
Channel spacing: Version "S" 12,5 KHz - Version"V" 25 KHz - Version "R" 20 KHz.
RF power output: 68-174 MHz 1 to 30 W - 174-520 MHz 1 to 25 W.
Audio output: 3 W minimum into 3 Ω with frequency response 300 to 3000 Hz.
Receiving sensitivity: 0,31μV at the socket antenna.

Selective call with CCIR 5 tone codes.
28 Transistors and 37 IC.

IC and transistors: MC340 MC3403 MC3403 BD676 BD436 BD676 MC3403 LM3578N MC7805C BLU99 BLU30/12 LS404 HEF4066 204C HEF4094 SL6652 LA940 TI935 BD964 FX335 PC74HC40 204 MC784 A45040 X24C16 BDC318H HC368 HT275512

Net weight (2.2 lb = 1 kg) 1.750 kg / 3 lb 13.7 oz (3.855 lb)
