Video Cassette Recorder VR2334/00

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1983

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 152572

• • Brand: Deutsche Philips-Ges.

• Picture

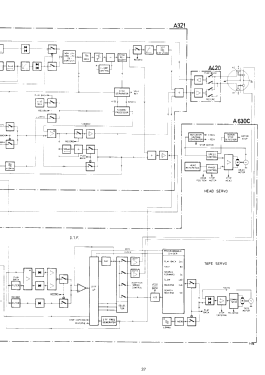

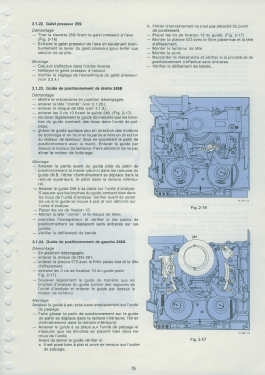

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Video-Taperecorder/-Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Video Cassette Recorder VR2334/00 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 450 x 110 x 300 mm / 17.7 x 4.3 x 11.8 inch

• Notes
• Philips VR2334 (VR2334/00);
  VCR-VTR system 2000 standard PAL, top-loader, DTF - Dynamic Track Following, IR-remote control, electronic VHF/UHF tuner standard B/G, Scart terminal, UHF modulator, LED display for clock and timer, unproven suffix /19F stands for French SECAM L version.

• Net weight (2.2 lb = 1 kg)
• 7.9 kg / 17 lb 6.4 oz (17.401 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 2544 models, 2256 with images and 1566 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips Radios - Deutschland
