Wireless TV Link Transmitter/Receiver SLV3100 /00 /05

Wireless TV Link Transmitter/Receiver SLV3100 /00 /05; Philips; Eindhoven (ID = 2238414) Misc Wireless TV Link Transmitter/Receiver SLV3100 /00 /05; Philips; Eindhoven (ID = 2238415) Misc

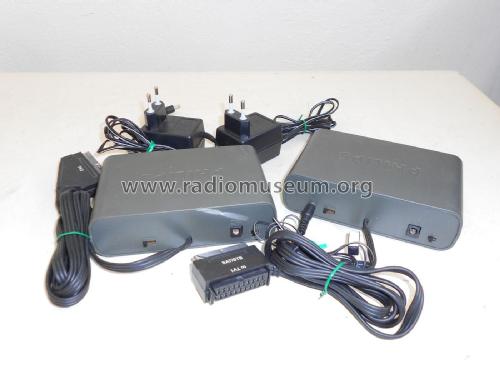

Wireless TV Link Transmitter/Receiver SLV3100 /00 /05; Philips; Eindhoven (ID = 2238416) Misc
Use red slider bar for more.
Wireless TV Link Transmitter/Receiver SLV3100 /00 /05; Philips; Eindhoven (ID = 2238414) Misc
Philips; Eindhoven: Wireless TV Link Transmitter/Receiver SLV3100 /00 /05 [Misc] ID = 2238414 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wireless TV Link Transmitter/Receiver SLV3100 /00 /05, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 2005 ? Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Powered by external power supply or a main unit. / DC 9 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Wireless TV Link Transmitter/Receiver SLV3100 /00 /05 - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 144 x 41 x 91 mm / 5.7 x 1.6 x 3.6 inch
Notes

TV standards: PAL, SECAM
Input / output: SCART connector
Typical operating range inside: 15 - 30 meters
Typical operating range outside: 100 meters
IR remote frequency: 32 - 40 kHz
Transmission frequency: 2.4 GHz audio and video
IR relay function from receiver to transmitter.

Sender model type: SLV3100 /00T or /05T
Receiver model type: SLV3100 /00R or /05R

Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Mentioned in - - Manufacturers Literature

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
