• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142177

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1T4 1R5 1T4 1S5 1Q5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 x 45 & 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Various materials

• from Radiomuseum.org
• Model: Radioplayer 111 - Philips Australia

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 13.25 x 11.5 x 5.25 inch / 337 x 292 x 133 mm

• Notes

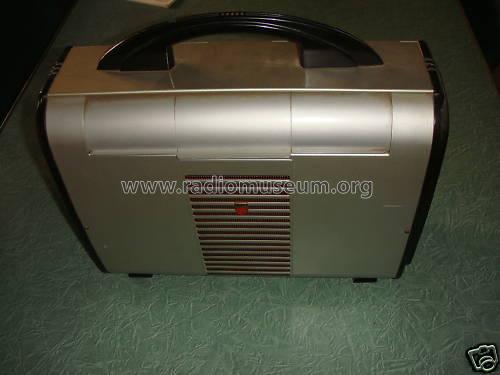

• Satin-finished aluminium case with wine-colored moulded plastic ends and handle on top.

  Original price included batteries.

  See also Mullard version, Model MBS1050.

• Net weight (2.2 lb = 1 kg)
• 7.6 kg / 16 lb 11.8 oz (16.74 lb)

• Price in first year of sale
• 29.98 Aus£

• Source of data
• -- Original prospect or advert

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. VII

• Literature/Schematics (1)
• - - Manufacturers Literature (Philips Radioplayer Service Data.)

• Literature/Schematics (2)
• Australian Official Radio Service Manual AORSM (Volume 7, 1949, Page 317.)

Radioplayer 111 service manual

912 KB

• Documents regarding this model

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
