Minstrel Four 138

Minstrel Four 138; Philips Australia (ID = 441157) Radio

Minstrel Four 138; Philips Australia (ID = 441188) Radio

Minstrel Four 138; Philips Australia (ID = 2173235) Radio

Minstrel Four 138; Philips Australia (ID = 2173239) Radio

Minstrel Four 138; Philips Australia (ID = 2173257) Radio

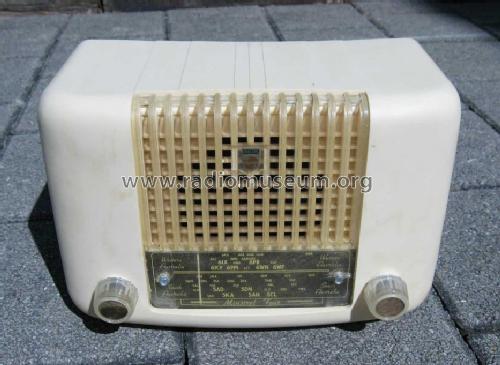

Minstrel Four 138; Philips Australia (ID = 2357274) Radio Minstrel Four 138; Philips Australia (ID = 681921) Radio

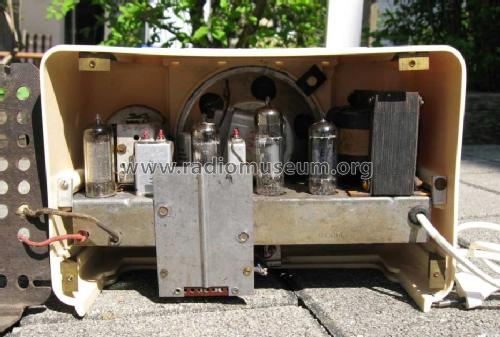

Minstrel Four 138; Philips Australia (ID = 681924) Radio Minstrel Four 138; Philips Australia (ID = 2269986) Radio
Minstrel Four 138; Philips Australia (ID = 438946) Radio Minstrel Four 138; Philips Australia (ID = 438945) Radio
Minstrel Four 138; Philips Australia (ID = 681922) Radio Minstrel Four 138; Philips Australia (ID = 681923) Radio
Minstrel Four 138; Philips Australia (ID = 2093949) Radio Minstrel Four 138; Philips Australia (ID = 2093950) Radio
Use red slider bar for more.
Minstrel Four 138; Philips Australia (ID = 2357274) Radio

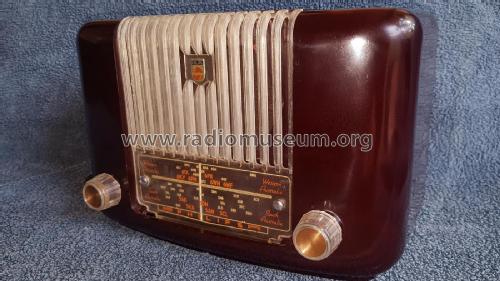

Philips Australia: Minstrel Four 138 [Radio] ID = 2357274 1400x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minstrel Four 138, Philips Australia

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner

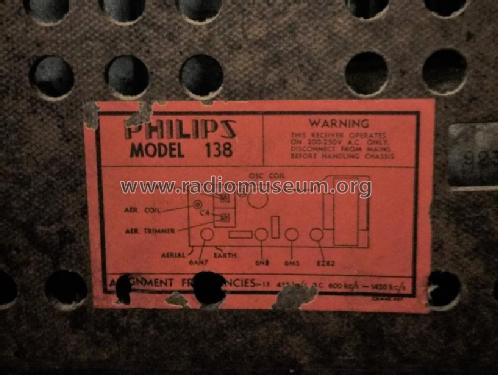

Valves / Tubes 4: 6AN7 6N8 6M5 EZ82
Main principle Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Minstrel Four 138 - Philips Australia
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

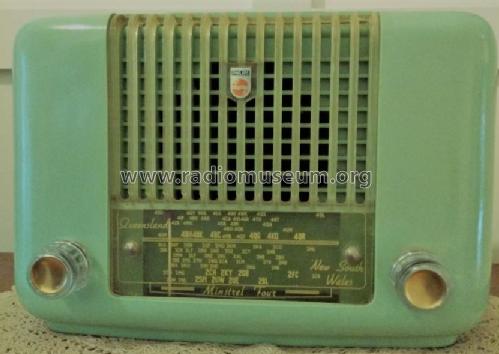

Colours available: Black, Blue, Burgundy, Fawn, Green, Ivory, Red, Walnut & White.

Price in first year of sale 20.00 AUS GNS
Source of data - - Data from my own collection

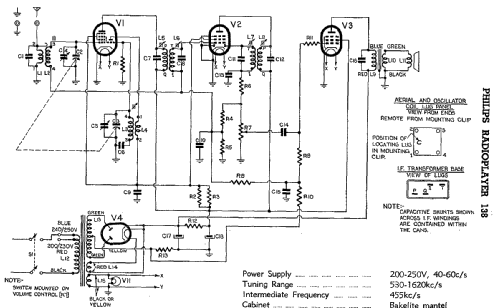

Circuit diagram reference Australian Official Radio Service Manual Vol. XII

Model page created by Peter Hughes. See "Data change" for further contributors.
