- Country
- Canada
- Manufacturer / Brand
- Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 179469
Modèle 1U51-P-1 COLLEGIATE
Modèle 1U51-P-1 COLLEGIATE
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org

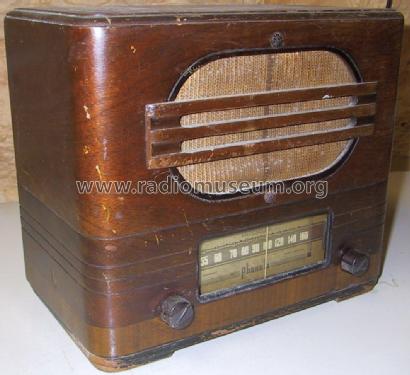

- Model: 1U51-P-1 [early] - Electrohome Dominion
- Dimensions (WHD)
- 11.25 x 9.75 x 6.25 inch / 286 x 248 x 159 mm
- Notes

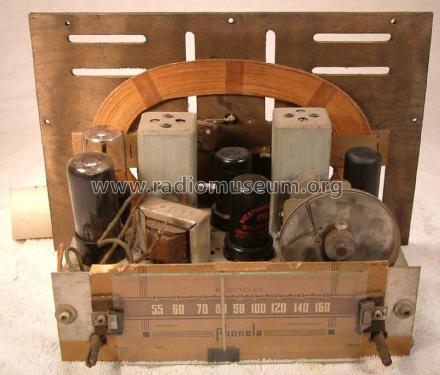

- Built-in loop antenna.
- Circuit diagram reference
- Radio College of Canada
- Mentioned in
- RCC Phonola Page 157
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
- Other Models
-
Here you find 894 models, 277 with images and 807 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)
Collections
The model 1U51-P-1 is part of the collections of the following members.
Forum contributions about this model: Electrohome Dominion: 1U51-P-1
Threads: 1 | Posts: 1
The guest David G from Waterloo, Canada, has sent a contact form with the message below:
Hello Radio museum! Just a fun little fact - this radio (I think I picked the right model) was an item brought into a pawn shop on the show: Auction Hunters: Pawn Shop Edition that aired March 16th, 2013. Spiketv.com has it as Episode 408 and the part with the radio starts around the 11minute 5second mark on their video stream.
Thank you, David, for telling. Maybe a member can link this if it is permanent, maybe the sequence is already put into YouTube and can be linked?
Ernst Erb, 20.Mar.13
